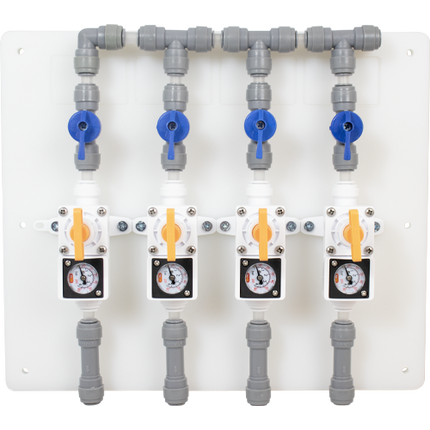

Duotight Draft Regulator Board | Gas Manifold | 4 Way

    Description

    Due to high demand, some of these items are currently out of stock but available for pre-order. Please check status notes below when selecting a size option to see if it is In Stock or tagged as PreBook. We will automatically ship this to you when we receive more inventory.

    • Serve beverages at different pressures without the need for multiple CO2 cylinders, dual body regulators, or expensive gas manifolds
    • Feed a single pressure to the gas board from your regulator and then step down the pressure on each Duotight regulator
    • Use one line for serving ales, another for soda or seltzer water, and another for carbonating a freshly filled keg
    • All parts shown are included and snap together quickly thanks to Duotight push-to-connect fittings and rigid plastic joiners
    • Duotight In-Line Regulators feature built-in pressure gauges that read 0-60 PSI and can be swapped out for different ranges if desired

    The Duotight Draft Regulator Board is a simple and cost-effective solution to serving beer and other beverages on draft at different pressures. With a standard CO2 tank and CO2 regulator, you can feed gas at a single pressure into the regulator board and then fine tune individual pressure settings for each gas line via the Duotight In-Line Regulators. These regulators feature built-in pressure gauges that make adjustments super simple and check valves are included as standard so you never have to worry about back flow into the regulator. This kit includes everything you need to assemble your regulator board and can be customized so the gas inlet is on the right or left side—whichever makes the most sense for your home draft setup. Duotight push-to-connect fittings and the precut rigid joiners make assembly a breeze and only takes 10-15 minutes!

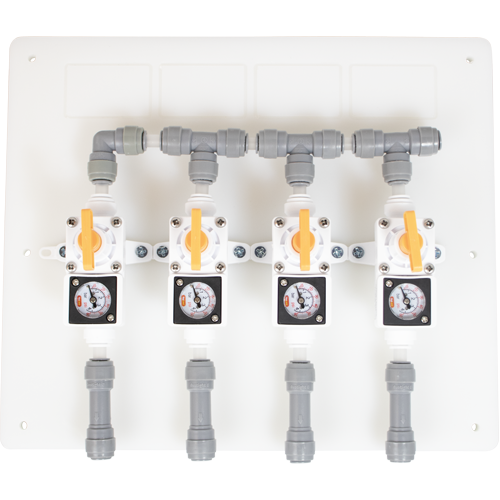

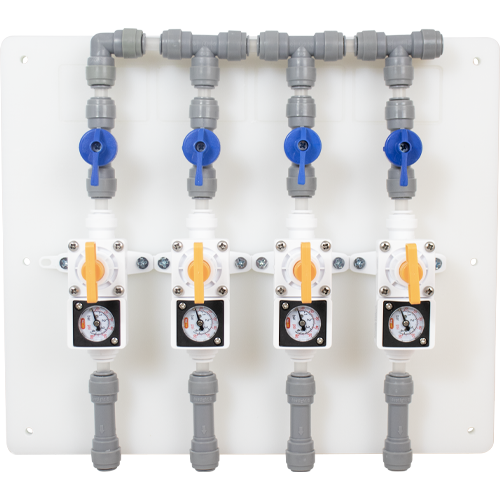

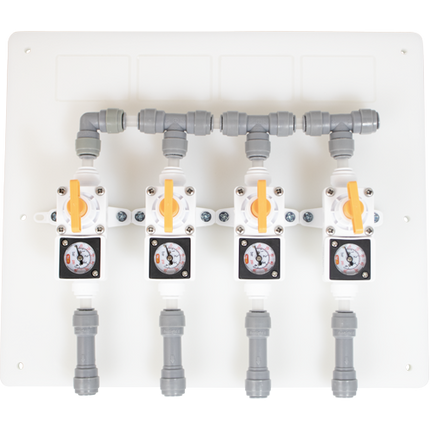

    The draft board kit comes in two options—with or without shut off valves. These valves offer peace of mind and allow you to shut off gas flow to any line that is not in use. If you ensure that your system has no leaks, they aren't technically needed, and you can always fully tighten your Duotight Regulator adjustment knob for added protection. But that little extra security might help you sleep easier at night! One advantage of choosing no check valves, however, is that it will leave room at the top of the board to label your gas lines.

    One of the coolest features of the Duotight In-Line Regulator is that the included pressure gauge can be swapped out for different pressure ranges. The standard gauge reads 0-60 PSI, but if you have one line that will always be used for serving Ales, you can swap to a 0-15 PSI gauge that will be a little easier to read and make precise adjustments. There's also a Digital Pressure Gauge available that provides backlit instant reads and is rated from 0-90 PSI.

    Need more than 4 gas lines? Check out the 6-Way Duotight Draft Regulator Board.

    Please Note: Full assembly required. The gas board, regulators, and fittings will arrive loose. Please see our instructions and assembly video below.

    Stepping Down Pressure
    The ideal regulation scenario occurs when the inline regulator steps down the output pressure to at least 10 PSI less than the inlet pressure. For example, if the inlet pressure is 30 PSI, the regulator effectively manages a range from 0–20 PSI on the output side ensuring optimal performance and stability.

    • Ideal regulation scenario (10 PSI less than inlet pressure)
    • Example of 30 PSI inlet translating to 0–20 PSI output

    Kit Includes:

    • 4-Output Gas Board
    • (4) Duotight In-Line Regulators
    • (4) Duotight Check Valves
    • (4) Duotight Shut Off Valves (if selected above)
    • (3) Duotight Tees
    • (1) Duotight Elbow
    • (15) Rigid Plastic Joiners

    NOTE: All Duotight fittings and rigid plastic joiners come as 8mm OD. Mounting hardware is included for the regulators but not for mounting the board itself to a wall or the inside of your kegerator/keezer. If you select the option without shutoff valves, you will be left with some spare joiners after assembly.

    Duotight Draft Regulator Board | Gas Manifold | 4 Way

      Product form

      SKU: D1130

      $98.99

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Description

        Due to high demand, some of these items are currently out of stock but available for pre-order. Please check status notes below when selecting a size option to see if it is In Stock or tagged as PreBook. We will automatically ship this to you when we receive more inventory.

        • Serve beverages at different pressures without the need for multiple CO2 cylinders, dual body regulators, or expensive gas manifolds
        • Feed a single pressure to the gas board from your regulator and then step down the pressure on each Duotight regulator
        • Use one line for serving ales, another for soda or seltzer water, and another for carbonating a freshly filled keg
        • All parts shown are included and snap together quickly thanks to Duotight push-to-connect fittings and rigid plastic joiners
        • Duotight In-Line Regulators feature built-in pressure gauges that read 0-60 PSI and can be swapped out for different ranges if desired

        The Duotight Draft Regulator Board is a simple and cost-effective solution to serving beer and other beverages on draft at different pressures. With a standard CO2 tank and CO2 regulator, you can feed gas at a single pressure into the regulator board and then fine tune individual pressure settings for each gas line via the Duotight In-Line Regulators. These regulators feature built-in pressure gauges that make adjustments super simple and check valves are included as standard so you never have to worry about back flow into the regulator. This kit includes everything you need to assemble your regulator board and can be customized so the gas inlet is on the right or left side—whichever makes the most sense for your home draft setup. Duotight push-to-connect fittings and the precut rigid joiners make assembly a breeze and only takes 10-15 minutes!

        The draft board kit comes in two options—with or without shut off valves. These valves offer peace of mind and allow you to shut off gas flow to any line that is not in use. If you ensure that your system has no leaks, they aren't technically needed, and you can always fully tighten your Duotight Regulator adjustment knob for added protection. But that little extra security might help you sleep easier at night! One advantage of choosing no check valves, however, is that it will leave room at the top of the board to label your gas lines.

        One of the coolest features of the Duotight In-Line Regulator is that the included pressure gauge can be swapped out for different pressure ranges. The standard gauge reads 0-60 PSI, but if you have one line that will always be used for serving Ales, you can swap to a 0-15 PSI gauge that will be a little easier to read and make precise adjustments. There's also a Digital Pressure Gauge available that provides backlit instant reads and is rated from 0-90 PSI.

        Need more than 4 gas lines? Check out the 6-Way Duotight Draft Regulator Board.

        Please Note: Full assembly required. The gas board, regulators, and fittings will arrive loose. Please see our instructions and assembly video below.

        Stepping Down Pressure
        The ideal regulation scenario occurs when the inline regulator steps down the output pressure to at least 10 PSI less than the inlet pressure. For example, if the inlet pressure is 30 PSI, the regulator effectively manages a range from 0–20 PSI on the output side ensuring optimal performance and stability.

        • Ideal regulation scenario (10 PSI less than inlet pressure)
        • Example of 30 PSI inlet translating to 0–20 PSI output

        Kit Includes:

        • 4-Output Gas Board
        • (4) Duotight In-Line Regulators
        • (4) Duotight Check Valves
        • (4) Duotight Shut Off Valves (if selected above)
        • (3) Duotight Tees
        • (1) Duotight Elbow
        • (15) Rigid Plastic Joiners

        NOTE: All Duotight fittings and rigid plastic joiners come as 8mm OD. Mounting hardware is included for the regulators but not for mounting the board itself to a wall or the inside of your kegerator/keezer. If you select the option without shutoff valves, you will be left with some spare joiners after assembly.
