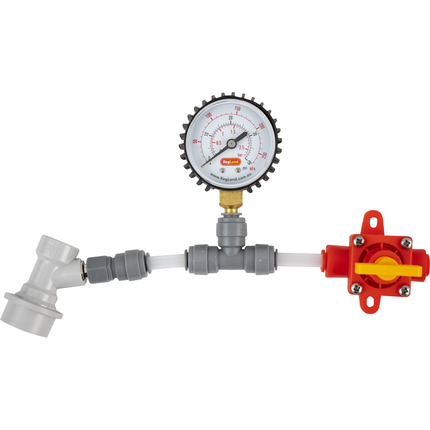

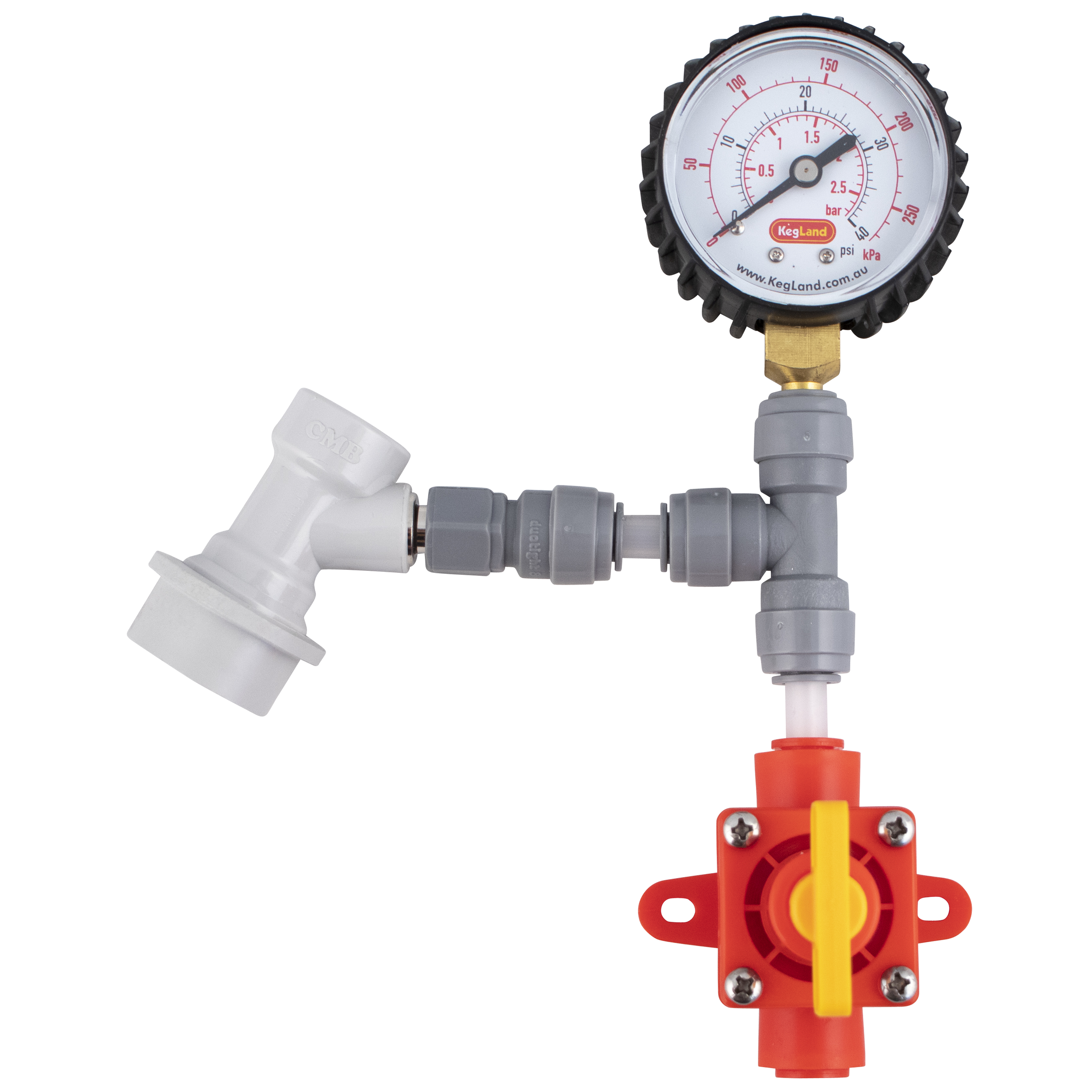

Duotight BlowTie | Complete Kit | Diaphragm Spunding Valve | Triple Scale Pressure Gauge | 0-40 PSI | 8 mm Duotight | CM Becker Ball Lock Quick Disconnect (QD)

    Description

    • Automatically release pressure inside your fermenter during pressure fermentations
    • Regulate beer flow during pressurized transfers from fermenter to keg
    • Large triple scale pressure gauge with extended 0-40 PSI pressure range
    • Diaphragm spunding valves offer higher accuracy compared to spring & poppet spunding valves
    • Comes complete with ball lock QD, Duotight adapter, tee, and rigid joiners

    With this complete kit you'll be ready to use the Blow Tie Spunding Valve right out of the box. The BlowTie is used to release excess pressure on a pressurized fermenter or from a receiving keg during pressure transfers. This diaphragm spunding valve is much more accurate than the spring and poppet style, and works much better at lower pressures.

    Pressure Fermentation
    Pressure fermentation is becoming more and more popular at the homebrew level, but in order to do it safely and accurately, you need a way to release excess pressure. You'll pressurize your vessel to your desired psi, but once fermentation begins and those hungry, active yeast start creating CO2, the pressure inside the vessel will increase. Attach a spunding valve and set it to your desired pressure, and it will blow off when the pressure gets to high and close up again when it's back to your desired psi.

    Pressure Transfers
    Even if you don't have a pressurizable fermenter, you may have done pressure transfers from keg to keg during filtering or after fining. During pressure transfers, it's a good idea to have a bit of head pressure in the receiving keg, especially if you're transferring beer that is already carbonated. Having a spunding valve in place will allow you to consistently control the head pressure and give you more consistent results, without losing carbonation in the process.

    Diaphragm vs. Poppet
    With the poppet style spunding valve, a spring pushes against a poppet to keep the valve closed. When the poppet lifts up to open, the surface area the gas pushes against becomes larger, and the spring has to work harder to push the poppet down and reseal the valve. This can lead to more gas being released than intended, and the remaining pressure in your vessel may be at a lower psi than your spunding valve’s set psi.

    Instead of a poppet, the spring inside the BlowTie pushes against a diaphragm, which has an immensely larger surface area. This means the surface area that the gas pushes against while the diaphragm is closed is significantly closer to the surface area it pushes against when the diaphragm is open. This leads to higher accuracy, and the remaining pressure after excess gas is released will be much closer to your set blow off pressure.

    Kit Includes:

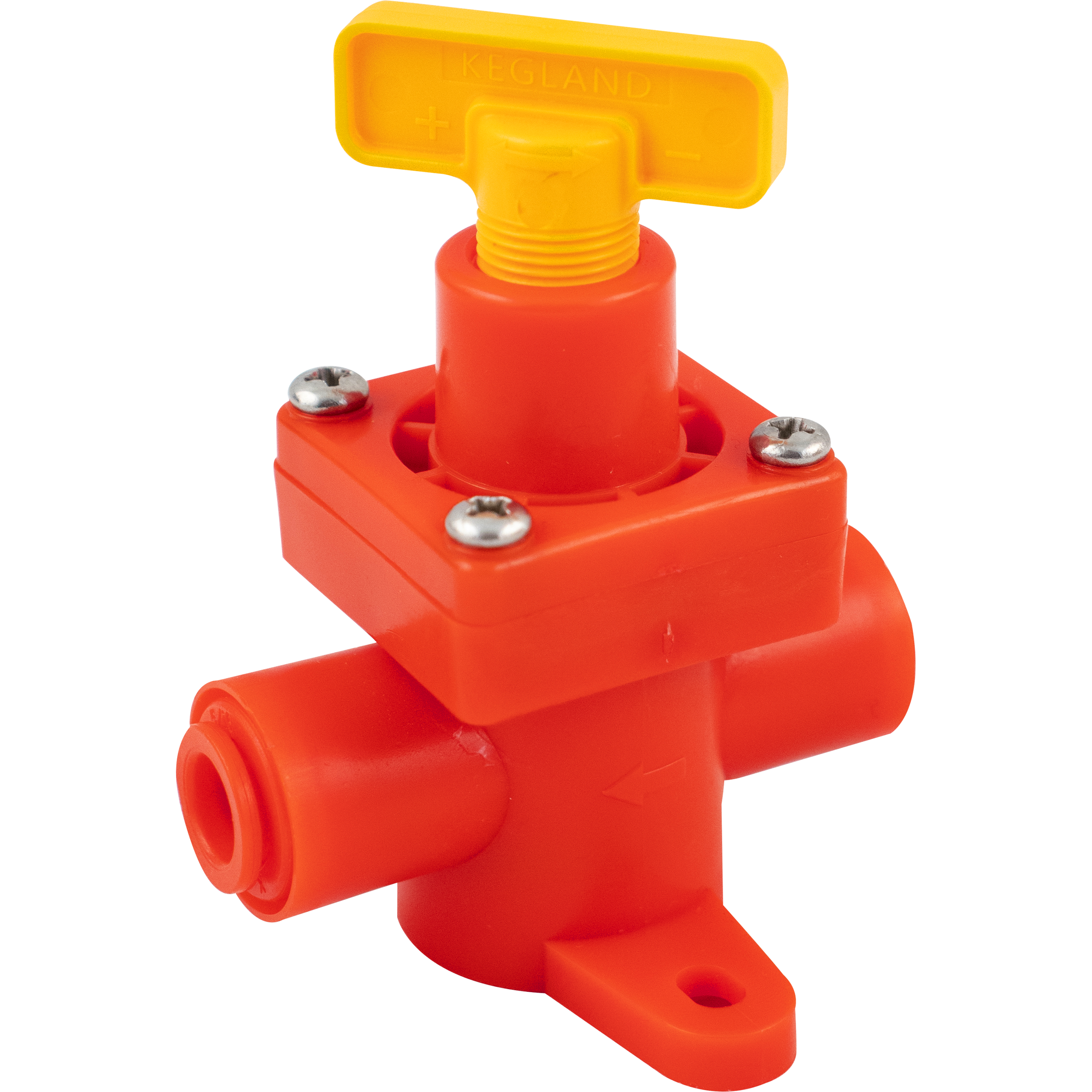

    • BlowTie

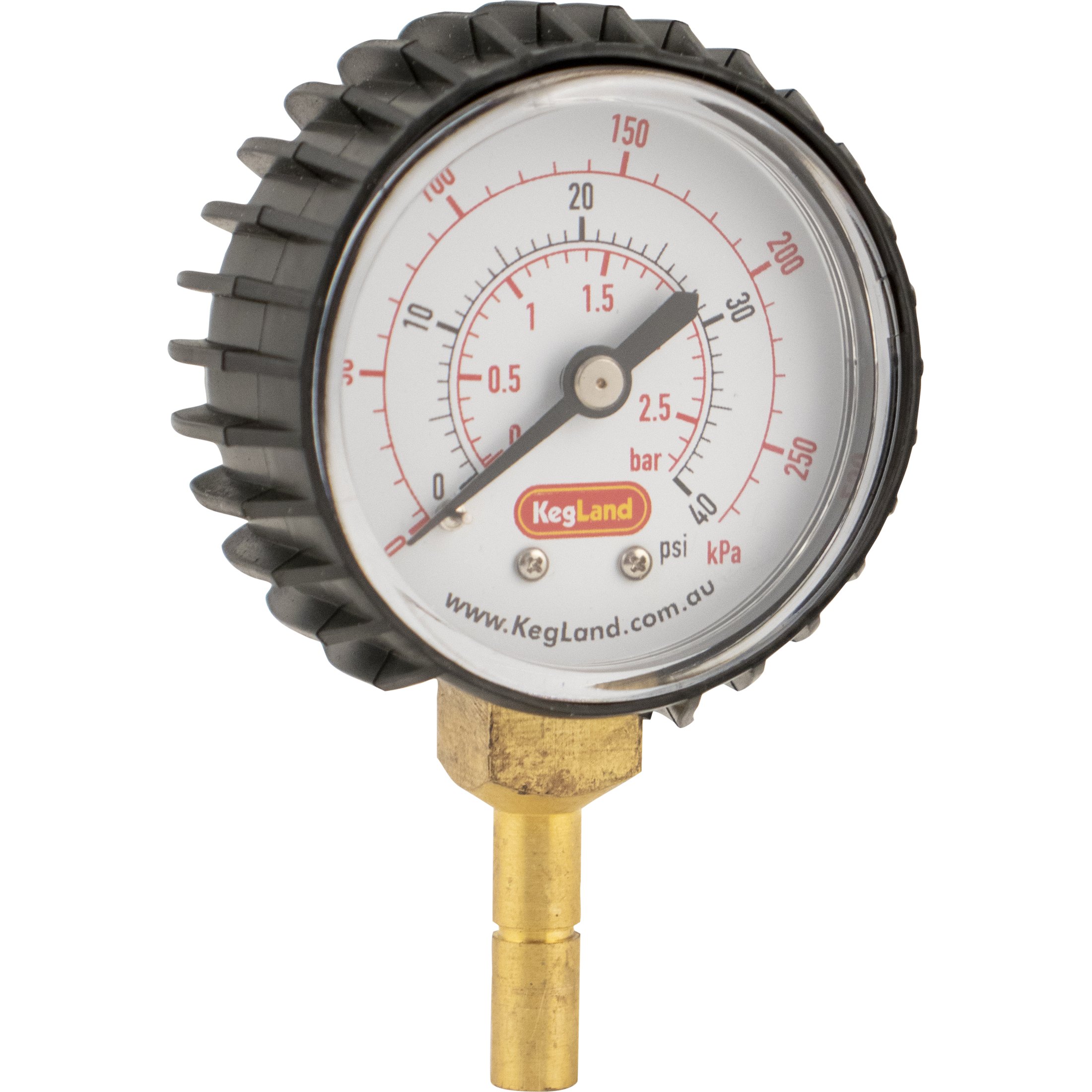

    • Pressure Gauge (0-40 psi)
    • Ball Lock Disconnect
    • Duotight Tee & Flared Duotight Fitting
    • 2x Lengths of EVABarrier 8mm OD Tubing



    Duotight BlowTie | Complete Kit | Diaphragm Spunding Valve | Triple Scale Pressure Gauge | 0-40 PSI | 8 mm Duotight | CM Becker Ball Lock Quick Disconnect (QD)

      Product form

      SKU: FE961

      $38.49

      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        • Automatically release pressure inside your fermenter during pressure fermentations
        • Regulate beer flow during pressurized transfers from fermenter to keg
        • Large triple scale pressure gauge with extended 0-40 PSI pressure range
        • Diaphragm spunding valves offer higher accuracy compared to spring & poppet spunding valves
        • Comes complete with ball lock QD, Duotight adapter, tee, and rigid joiners

        With this complete kit you'll be ready to use the Blow Tie Spunding Valve right out of the box. The BlowTie is used to release excess pressure on a pressurized fermenter or from a receiving keg during pressure transfers. This diaphragm spunding valve is much more accurate than the spring and poppet style, and works much better at lower pressures.

        Pressure Fermentation
        Pressure fermentation is becoming more and more popular at the homebrew level, but in order to do it safely and accurately, you need a way to release excess pressure. You'll pressurize your vessel to your desired psi, but once fermentation begins and those hungry, active yeast start creating CO2, the pressure inside the vessel will increase. Attach a spunding valve and set it to your desired pressure, and it will blow off when the pressure gets to high and close up again when it's back to your desired psi.

        Pressure Transfers
        Even if you don't have a pressurizable fermenter, you may have done pressure transfers from keg to keg during filtering or after fining. During pressure transfers, it's a good idea to have a bit of head pressure in the receiving keg, especially if you're transferring beer that is already carbonated. Having a spunding valve in place will allow you to consistently control the head pressure and give you more consistent results, without losing carbonation in the process.

        Diaphragm vs. Poppet
        With the poppet style spunding valve, a spring pushes against a poppet to keep the valve closed. When the poppet lifts up to open, the surface area the gas pushes against becomes larger, and the spring has to work harder to push the poppet down and reseal the valve. This can lead to more gas being released than intended, and the remaining pressure in your vessel may be at a lower psi than your spunding valve’s set psi.

        Instead of a poppet, the spring inside the BlowTie pushes against a diaphragm, which has an immensely larger surface area. This means the surface area that the gas pushes against while the diaphragm is closed is significantly closer to the surface area it pushes against when the diaphragm is open. This leads to higher accuracy, and the remaining pressure after excess gas is released will be much closer to your set blow off pressure.

        Kit Includes:

        • BlowTie
        • Pressure Gauge (0-40 psi)
        • Ball Lock Disconnect
        • Duotight Tee & Flared Duotight Fitting
        • 2x Lengths of EVABarrier 8mm OD Tubing



        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 0.4 lb
        • 5 stars: 24 (62%)
        • 4 stars: 7 (18%)
        • 3 stars: 8 (21%)
        • 2 stars: 0 (0%)
        • 1 star: 0 (0%)
        J
        Joey winstead
        Excellent product

        The bow tie is worth the money. I use it for several different task. I would recommend this product to anyone.

        c
        christopher s.
        Maybe

        Received this fully-assembled unit a few days ago. The BlowTie spunding valve was hooked up on the output side of the valve (arrow pointing at tube). One minute of frustration. But, many may not check, given it is already assembled. Flipped tube to other side, and it seems OK now.Gauge at 4.5 PSI with no pressure on it. Yes, I tried "burping" it. No dice. I hope this all works. None of this is confidence building.

        J
        Joshua A C.
        BlowTie or Die!

        I have used a couple different spunding valves and even built my own. All of those, however, used the spring and poppet pressure relief valve. Wanting a greater degree of accuracy, I decided to order a BlowTie spunding valve. The diaphragm PRV makes such a big difference when trying to maintain a set pressure! Perfect for pressure fermentation. I wish I had gotten one from the get go!I'm not generally a fan of more plastic in my "brewhouse" (garage), but in this case it's beneficial. I use fermcap to keep kraeusen under control, but it's no guarantee. If the BlowTie does get high kraeusen in it, it's very easy to clean and sanitize before using again. The duotight fittings make it super easy to take apart, and being unthreaded, easier to clean.On top of everything else, it's a great price! It's not much more expensive than the cheapest spunding valves on the market, and cheaper than building your own. The performance is second to none. BlowTie is the clear choice when selecting spunding valves (at the homebrew level at least).

        A
        Aaron Meadows
        works mostly

        if the foam cap gets anywhere near this thing its not gonna work.

        J
        John S.

        very easy to operate

        J
        Joseph
        Works

        This works, but don't expect perfection... It is a plastic valve that isn't as smooth as a metal one would be but overall it works. You will just need to adjust it so keep an eye on it until it's dialed in for the pressure you want... Would I buy it again... Yes I would

        P
        Pete B.
        It Works

        I have just gotten into pressure fermenting and it is GREAT and this Spunding valve works GREAT. The only thing that you have to watch out for is after taking it apart for cleaning (not the valve) is the flow direction it is hard to see the arrow on the valve.

        J
        Justin L.
        Watch for backwards valve installation

        Everything is fine with my BlowTie and it is working great, but I inspected it before use and found that the valve was installed backwards. It's an easy fix because of the DuoTight fittings, but it's something that could be a potential safety issue if not caught. Based on other reviews, I'm not the only person who has come across this issue.

        F
        Frank R.
        Blow tie

        Works great used on an ipa that was awesome.

        J
        Jeremy L.
        Ferment under pressure

        Great accessory to hold a consistent pressure for fermentation under pressure. Attached mine to the fermzilla.

        S
        Steve D.
        Works well but beware of incorrect assembly!

        The spunding valve came pre-assembled from MoreBeer. It worked perfectly once I figured out that the regulator had been installed backwards and would not bleed pressure no matter how much the pressure adjuster was turned out. That could've resulted in severe over-pressurization of the beer and fermenter. MoreBeer needs to tighten-up their quality control or someone could get hurt, or worse yet, ruin a perfectly good batch of beer!

        D
        David K.
        Don't let the plasic concern you.

        Since the package that I received did not come with instructions and was assembled incorrectly, I would highly recommend going to YouTube and watch the assembly and use instructions. I also recommend purchasing additional 8 mm or 5/16 of tubing to help with the pressure settings. You will be glad you did.

        R
        Randall D.
        Upgrade

        This diaphragms supding valve is an upgrade over the poppet style.

        J
        Joey w.
        Excellent product

        The bow tie is worth the money. I use it for several different task. I would recommend this product to anyone.

        J
        John R.
        Zero complaints!

        I've used this for a handful of pressurized fermentations and transfers with zero issues. Super easy to dismantle and clean if krausen/wort manages to get into the valve.

        P
        Paul S.
        Great spunding valve!

        I bought this valve because I had trouble with another style spunding valve. This one worked fantastic. I would recommend this valve if you want to easily pressure ferment!

        M
        Mike R

        a necessity for all home brewers

        A
        Adam
        Valve installed backwards

        After struggling with using for three different batches I realized the valve was installed backwards. Easy to fix and working now. Check the direction of the arrow on the side of the valve.

        J
        Jeff L.
        I'm guessing it's okay

        Did my brewing using my Fermzilla for the second time. Put this on and away we go. Fermentation starts and I try adjusting this one way and the other and it isn't venting. I'm starting to worry as it's a Monday and MoreBeer is closed. Ended up getting a (newer?) replacement at another shop and it works great. When I watched the vid on this they were explaining how to assemble it. Mine was assembled when I got it. Did some looking at it and it would appear that the diaphragm on the end was attached with the flow indicator backward. I'll return it and get another recipe kit. 3 star for it not working but not lower as the new one from the same vendor seems to work just fine.

        B
        Brian J.
        Great product, would have given 5 stars except for a couple issues

        So far it works good, mine came in a different configuration than shown above, which worries me if I’m filling a keg and foam gets in the line and could get into the gauge. I don’t know how those fittings work so I haven’t reoriented the gauge. Also the gauge has slipped out causing gas leak.

        G
        George M.

        Works as it should...

        S
        Steven B.

        Fermented a lager warm in a corny keg with this attachment and the beer came out clean and almost fully carbonated.

        J
        James J.
        Works ok.

        Kind of a pain in the *** to set up. You have to make fine adjustments throughout the span of a day until you get it set to your desired PSI. AT first it wasn't working at all but I gave it a good bump and the diaphragm stopped sticking. The set screw is pretty short so setting it to 10 PSI was almost at the end of the threads. Overall it worked ok.

        R
        Rick T.

        Alsome just got done using it.It lot better then the metal one i brought from you guys.

        R
        ROBERT H.
        Measures pressure accurately

        The gauge does what it is supposed to and is accurate and responsive. The pressure fittings for the tubing and its connections sometimes fall apart, even with slight motion to the assembly

        K
        Kris C.
        Awesome

        Sounding Valve Essential and they have it!

        T
        THOMAS MOLLET
        Not worth the money

        The unit leaks and causes pressure to drop. I have tried to tighten and it still leaks. Therefore it has minimal value as a spunding valve.

        J
        Jose A.
        Secure your connections well.

        Works mechanically great, just have to make extra certain to make your connections are secure, as lateral force on the tubing from the gauge and gravity can cause leaks if extra care is not taken to secure them.
