Description
- Automatically release pressure inside your fermenter during pressure fermentations
- Regulate beer flow during pressurized transfers from fermenter to keg
- Built-in pressure gauge for easy reference when adjusting the spunding valve
- Pressure gauge is interchangeable—swap to different pressure ranges that better suit your application
- Diaphragm spunding valves offer higher accuracy compared to spring & poppet spunding valves
- Comes complete with ball lock QD, Duotight adapter, and rigid joiner

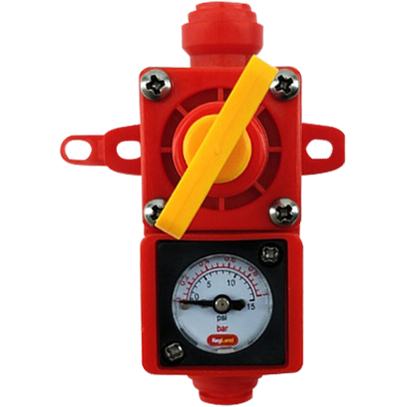

With this complete kit you'll be ready to use the BlowTie 2 Spunding Valve right out of the box. The BlowTie is used to release excess pressure on a pressurized fermenter or from a receiving keg during pressure transfers. This diaphragm spunding valve is much more accurate than the spring and poppet style, and works much better at lower pressures.

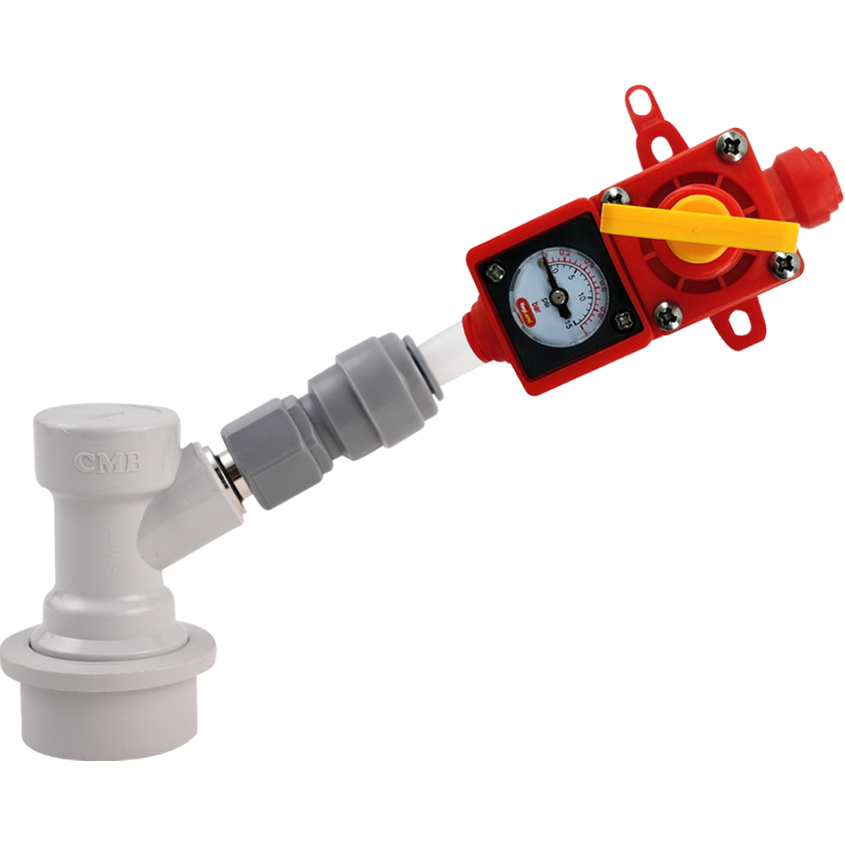

This version of the Spunding Valve Kit includes the CM Becker Ball Lock QD, often considered the finest quality in plastic ball lock quick disconnects, and an 8 mm Duotight Flare Adapter for connecting to the BlowTie.
The BlowTie 2 can also be upgraded with a Digital Mini Pressure Gauge.
Pressure Fermentation
Pressure fermentation is becoming more and more popular at the homebrew level, but in order to do it safely and accurately, you need a way to release excess pressure. You'll pressurize your vessel to your desired psi, but once fermentation begins and those hungry, active yeast start creating CO2, the pressure inside the vessel will increase. Attach a spunding valve and set it to your desired pressure, and it will blow off when the pressure gets to high and close up again when it's back to your desired psi.
Pressure Transfers
Even if you don't have a pressurizable fermenter, you may have done pressure transfers from keg to keg during filtering or after fining. During pressure transfers, it's a good idea to have a bit of head pressure in the receiving keg, especially if you're transferring beer that is already carbonated. Having a spunding valve in place will allow you to consistently control the head pressure and give you more consistent results, without losing carbonation in the process.
Diaphragm vs. Poppet
With the poppet style spunding valve, a spring pushes against a poppet to keep the valve closed. When the poppet lifts up to open, the surface area the gas pushes against becomes larger, and the spring has to work harder to push the poppet down and reseal the valve. This can lead to more gas being released than intended, and the remaining pressure in your vessel may be at a lower psi than your spunding valve’s set psi.
Instead of a poppet, the spring inside the BlowTie pushes against a diaphragm, which has an immensely larger surface area. This means the surface area that the gas pushes against while the diaphragm is closed is significantly closer to the surface area it pushes against when the diaphragm is open. This leads to higher accuracy, and the remaining pressure after excess gas is released will be much closer to your set blow off pressure.
Kit Includes:
- BlowTie 2 w/ Integrated Pressure Gauge (0-15 psi)
- CM Becker Gray Ball Lock Disconnect
- Duotight Flare Fitting
- 8 mm OD Rigid Plastic Joiner
