BrewBuilt® Electric Brewing Kettle | T.C. x T.C. Ball Valve

    Description

    • Welded 1.5" tri-clamp ports for a lifetime of leak-free use
    • 304 stainless steel construction with mirror polish finish
    • SlingBlade electric heating element with Tri-Clamp connections

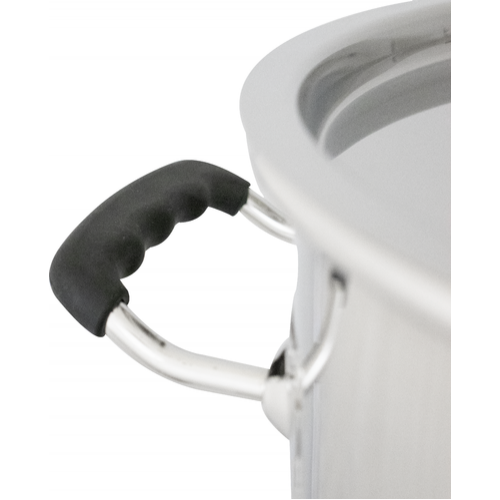

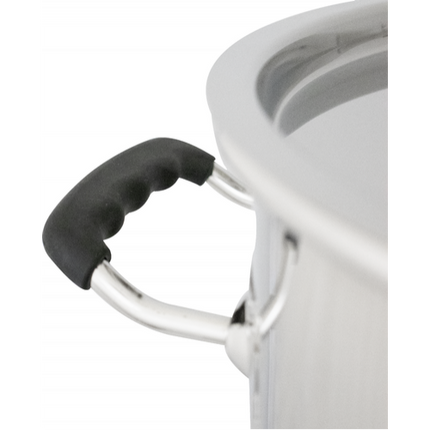

    • Front and back located handles with silicone grips
    • Notched lid provides cover while not interfering with immersion chillers, hop bags, or other accessories

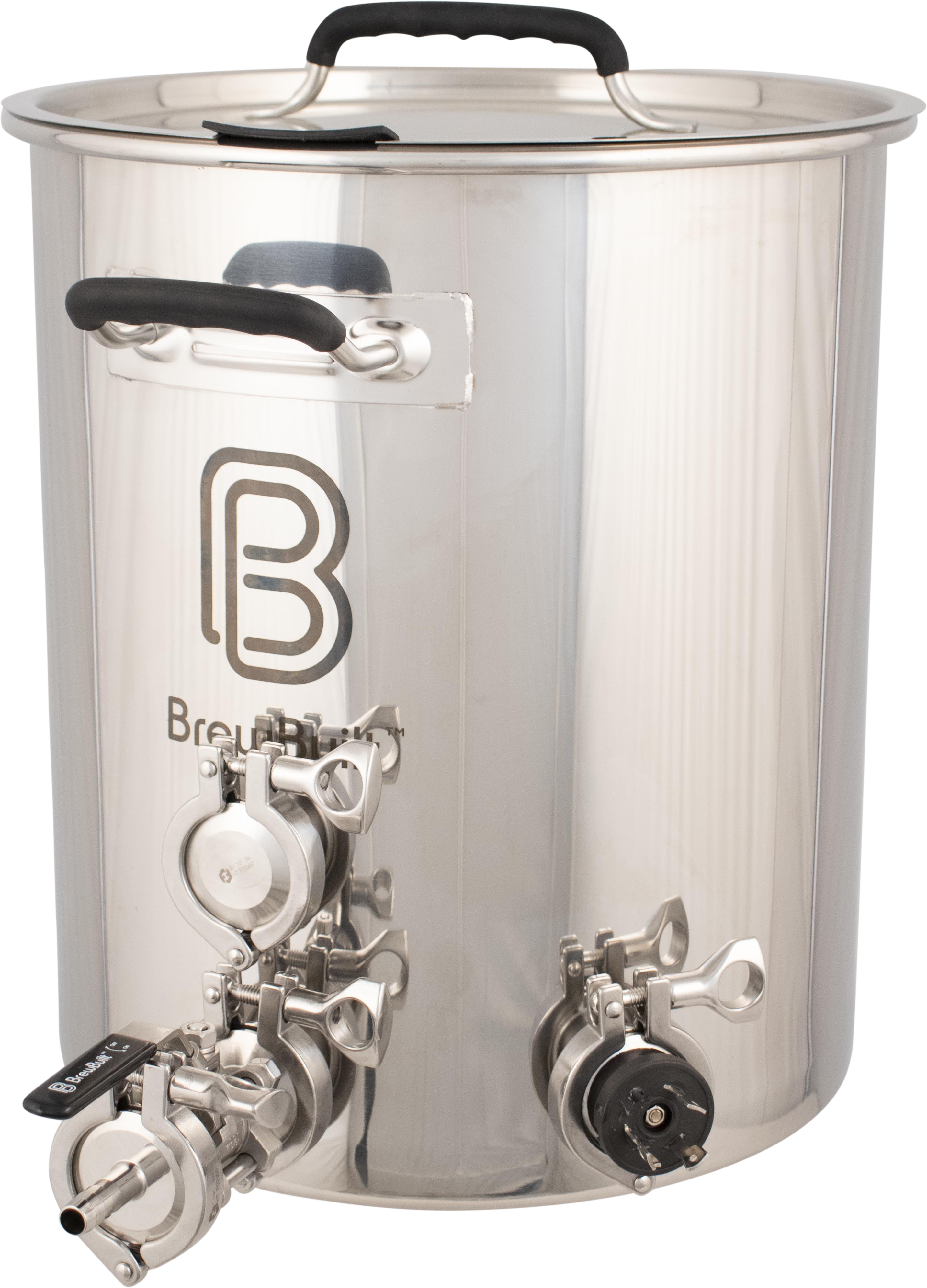

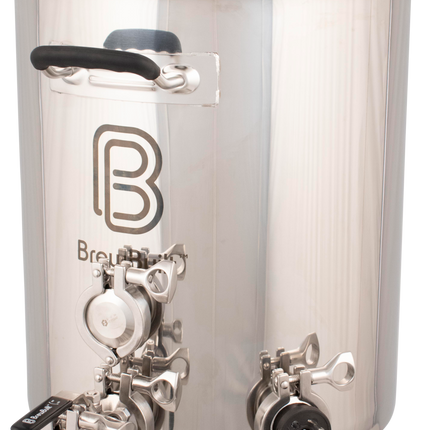

    The BrewBuilt Electric Kettle
    The BrewBuilt Electric Brewing Kettle features an offset welded tri-clamp ferrule for easy installation of the SlingBlade electric heating element. The SlingBlade elements were designed specifically for the BrewBuilt kettles and each element fits the corresponding kettle like a glove, perfectly matching the curvature of the kettle wall and providing the appropriate amount of power for the volume size. The unique crescent-shaped design places the element on one side of the kettle, leaving the opposite side clear for an immersion chiller or other accessories. Positioning the element in this way also promotes a rolling boil that evenly ditributes heat throughout the kettle. You'll love the results you get with the SlingBlade's ultra-low watt density, which won't scorch your wort. The kettle does not come with a power cord so you'll need to provide your own extension cord, or add our watertight On/Off power switch for the most convenient way to power the element. Handles are located at the front and back, rather than either side, saving you space when building out a horizontal system and will keep fittings pointed away from you regardless of which side you pick up the kettle from. This model includes a T.C. x T.C. ball valve with 1/2" barb. Also available with Butterfly Valve or T.C. x FPT Ball Valve hardware packs.

    Designed for Brewing. Built to Last.
    BrewBuilt brew kettles are made from 304 stainless steel and offer an unparalleled mix of features for the price. At the very top of the list are two welded-in place tri-clamp couplers that offer a lifetime of leak free use. As you can imagine, welding in a coupler costs more than punching a hole and using a gasketed (i.e. weld-less) fitting. Welded fittings offer a permanent connection that to us is worth every penny. The second unique feature that we absolutely love about these brew kettles is the notched lid with silicone plug. This notch allows you so much flexibility; you can use an immersion chiller, one of our Ultimate Sparge Arms for mashing, tie off hop bags, take a temp reading during cooling, or whatever else we all can dream up.

    Our T.C. kettles were designed to keep pace with the ever-evolving world of brewing technology. Tri-clamp fittings are standard fare in professional breweries, and they’ve been widely adopted in homebrewing as T.C. fermenters and pumps become more affordable and widely available. Tri-clamp fittings, also known as Tri-clover, allow you to make a sanitary connection that is free of nooks and crannies for contaminants to take hold. They are much easier to break down for cleaning compared to threaded connections, and they don’t require Teflon tape to make a watertight seal. T.C. fittings and accessories also give you the distinct advantage of being able to clean in place (CIP), so you don’t need to break down your entire system after every brew day.

    This Brew Kettle has a lot to offer...
    Some other features we dig include the internal volume markers from the bottom to the top - so handy for instant reads. The silicone sleeved handles on the kettle and the lid are a cool feature to protect your hands. The tri-clad bottom with a 4mm core of aluminum sandwiched between two layers of stainless steel offers even heat distribution during the boil and also makes it a perfect choice for anyone wanting to use an induction burner. The bottom coupler is also cool with 1/2" male threads on the outside and 1/2'' female threads on the inside.

    Beefy 304 Stainless
    These kettles are made from 304 grade stainless. That means you will have less corrosion issues than with a kettle made from lower grade 201 type stainless. We put these kettles through a corrosive salt water test in the MoreBeer! shop and they passed with flying colors. We also made sure the rivets and riveted handles were also made of stainless steel for a long term, trouble free life. The 10 and 15 gallon size are made from 1.0mm thick stainless steel. The 20, 30 and 50 gallon size are made with 1.2mm stainless - that's pretty thick stuff - and you will know it when you pick one up. The included ball valve is a two piece design that allows for easy cleaning (we prefer these over 3 piece for ease of assembly) and is also made from 304 stainless.

    Mirror Polish Finish
    The mirror polish finish isn’t just for making your Instagram feed pop! This extra slick finish is much easier to clean and sanitize than a standard brushed stainless kettle. Hop trub and other organic solids left behind after a brew day will have a hard time clinging to the interior surface and scrub away with ease.

    Size Ratios and Stuff
    All the BrewBuilt kettles follow the recent trend to a 1.2:1 ratio where the height is 1.2 times the diameter. This is a proven commercial ratio that has been adopted in homebrewing to achieve a more consistent 10% evaporation rate during the boil. We do like this ratio for boiling. For Mashing we would prefer a little bit shallower but that is a small compromise. Dimensions for a hot-liquor tank, if you are thinking brewing system down the road, are irrelevant as any ratio kettle will do.

    Final Words
    With welded tri-clamp fittings, mirror polish finish, a bunch of cool features, and a solid, thick 304 stainless steel core this kettle is a pretty amazing value. Remember, if you order from MoreBeer! we ship free anywhere in the continental USA!

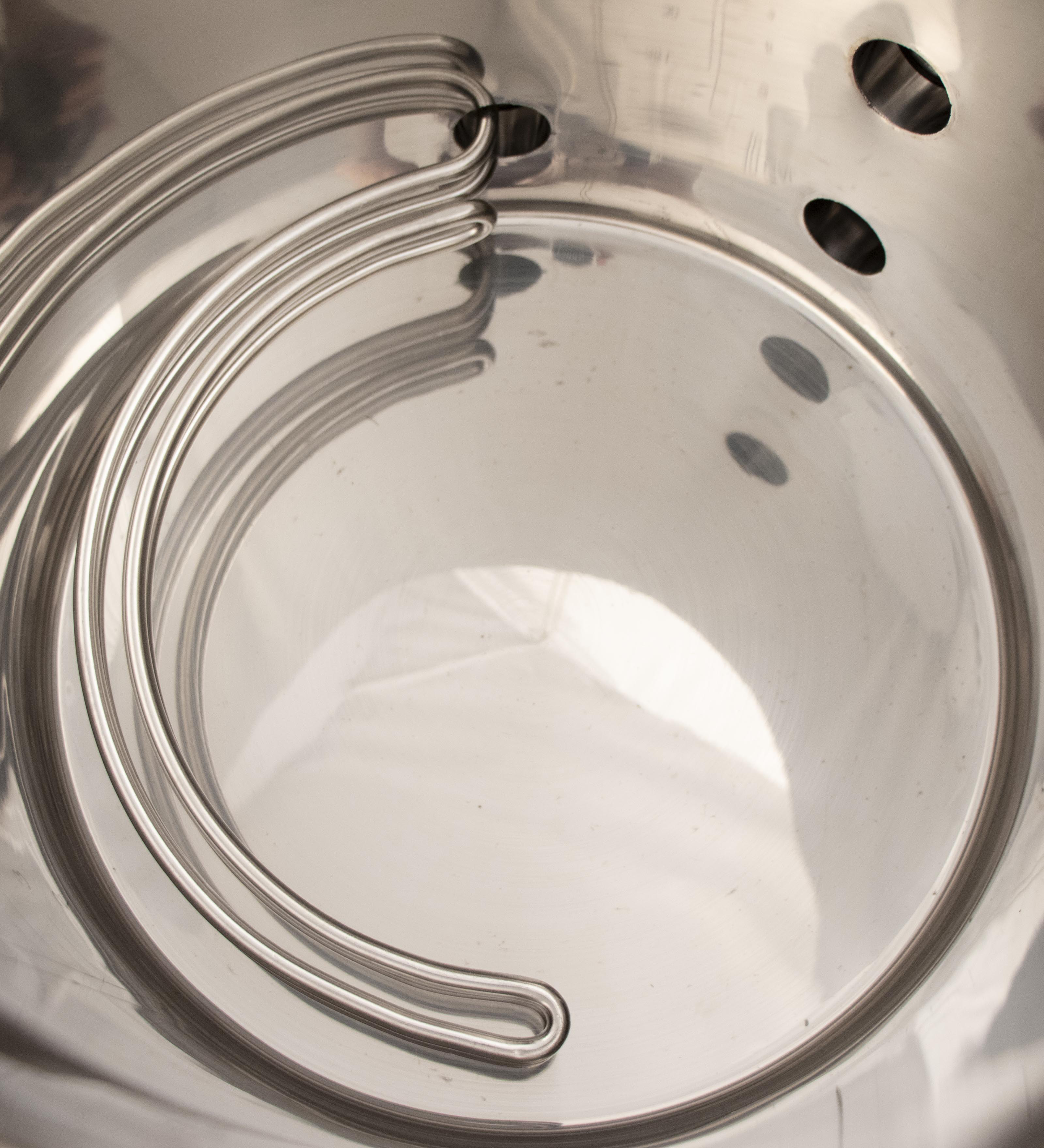

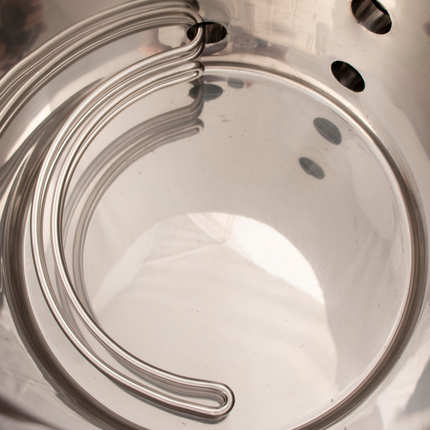

    SlingBlade Heating Elements
    The BrewBuilt SlingBlade's unique crescent-shaped design promotes a rolling boil and even heat distribution. This electric heating element places all of the heating power on one side of the kettle, sending thermal energy upward to the surface that then cascades downward on the opposite side of the kettle. This movement creates a natural turbulence that evenly distributes heat while creating a vigorous boil. By being located on one side of the kettle, the other side is clear for immersion chillers, and the curved shape won't obstruct the flow of wort during whirlpool. Thanks to the non-circular design, the SlingBlade can easily be installed on any kettle with a 1.5" tri-clamp ferrule. This also makes removing the element for cleaning between uses a breeze.

    Kettle Key Features:

    • Three welded T.C. couplers for a lifetime of leak free use
      • 50-gal kettle has four welded T.C. couplers to use with two heating elements

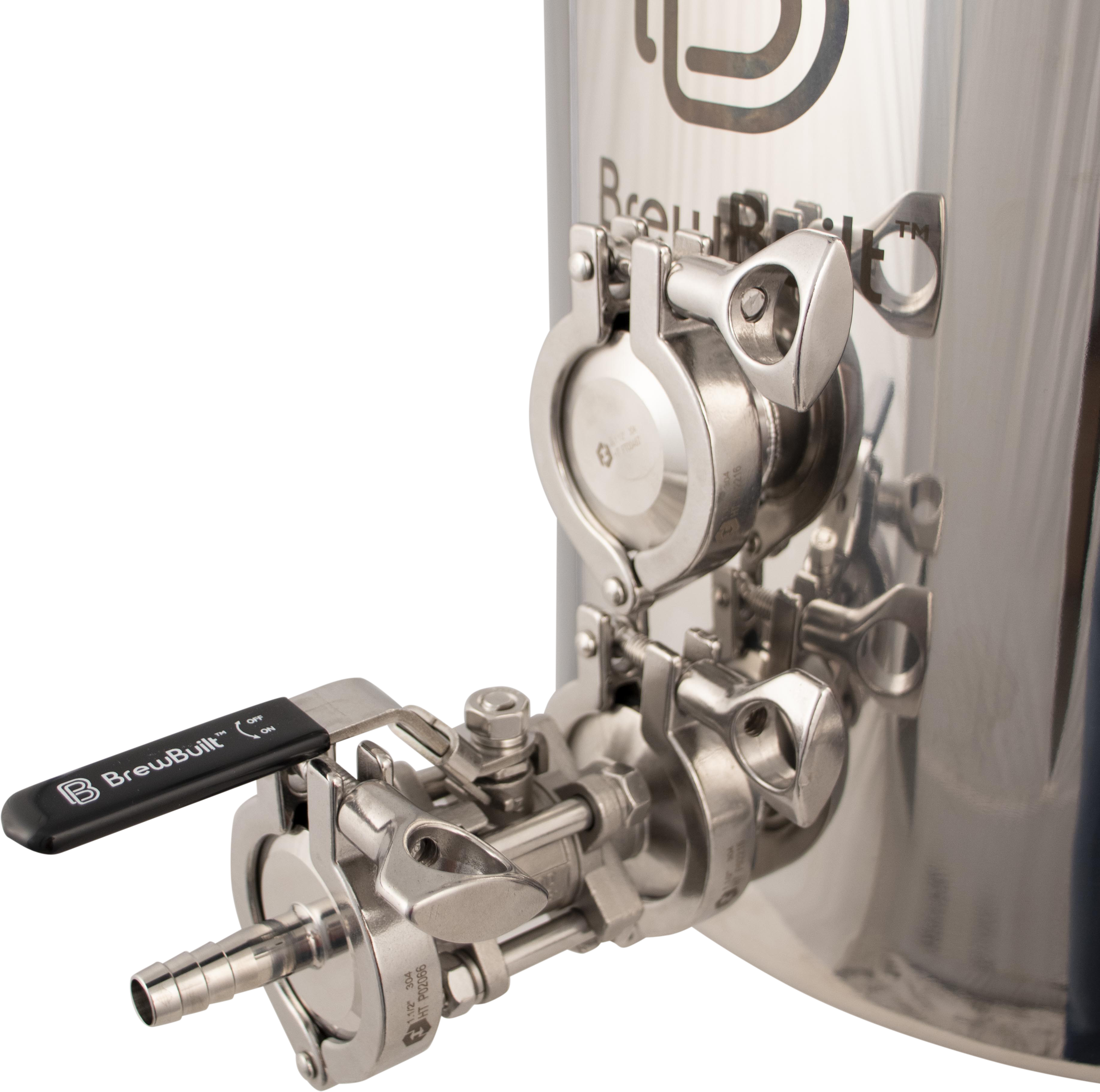

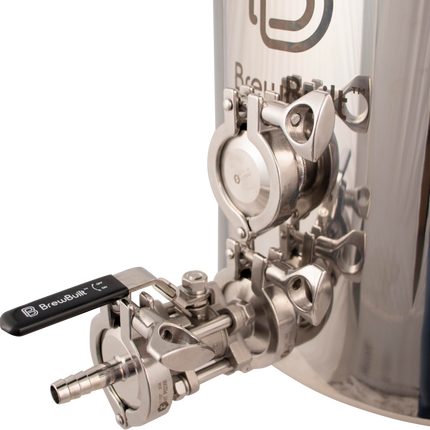

    • T.C. x T.C. ball valve with 1/2" barb
    • AISI304 Stainless Steel construction for longevity and excellent corrosion resistance
    • Stainless handles and rivets for secure lifting
    • Silicone coated kettle and lid handles for heat protection
    • Lid is designed to conveniently hang from a handle
    • 4 mm Tri-Clad Bottom with Aluminum Core heats quickly and disperses heat evenly to prevent scorching
    • Induction burner compatible
    • 1.0mm (10 & 15 gal) or 1.2mm (20, 30 & 50 gal) thick side walls resist denting
    • 1.2:1 height to diameter ratio provides optimal evaporation rate during boiling

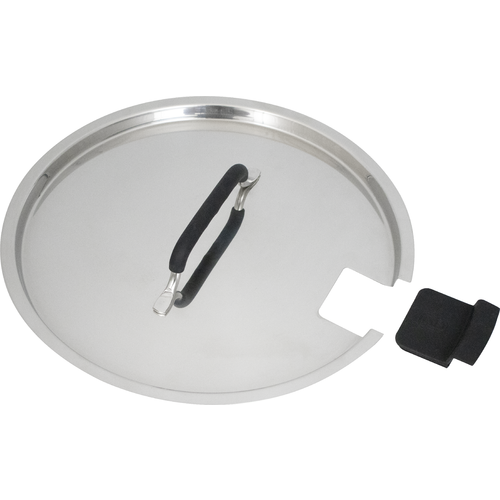

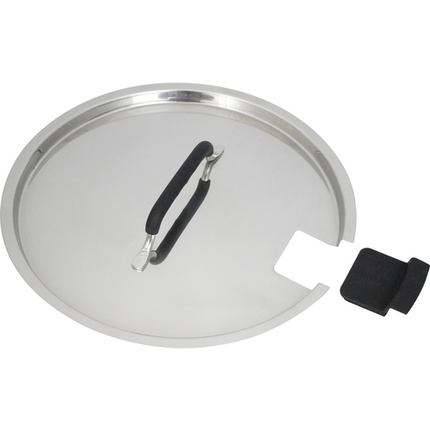

    • Industry-First notched lid with silicone plug accommodates an immersion chiller or sparge arm

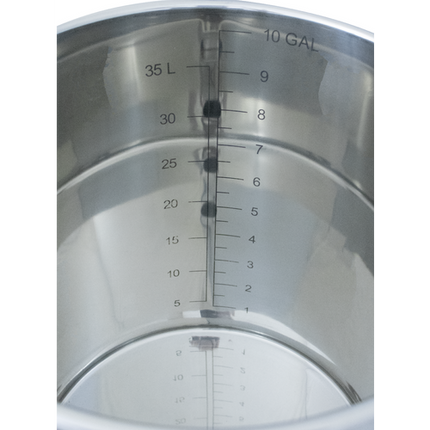

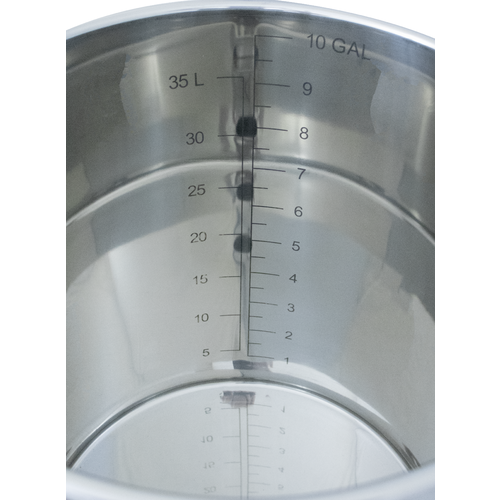

    • Internally etched volume markers from top to bottom for easy filling

    SlingBlade Key Features:

    • Made from Stainless Steel with proprietary coating for long life

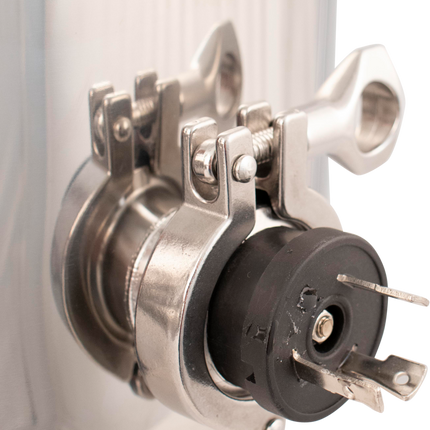

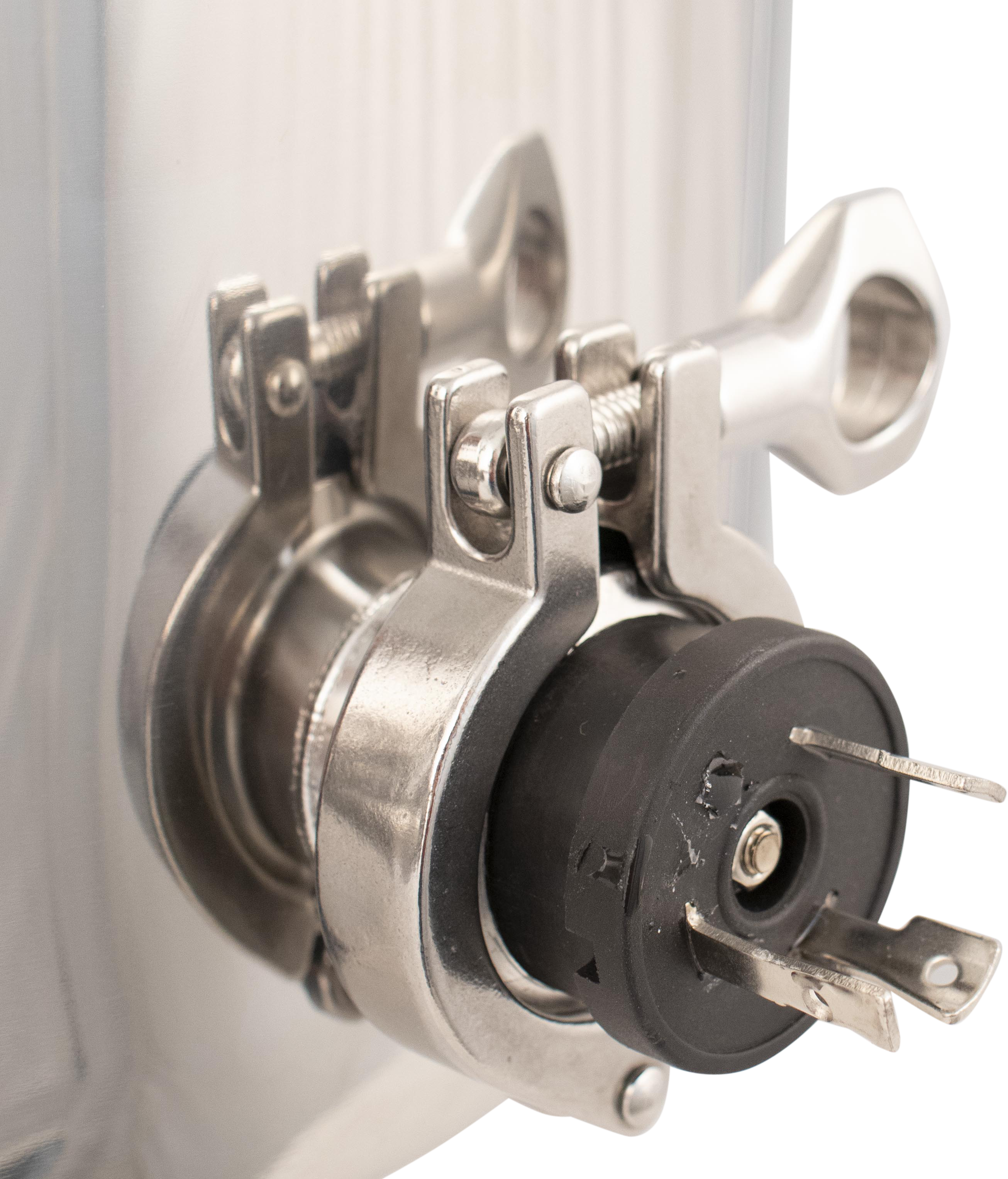

    • 1.5" Tri-Clamp connection
    • Unique offset design promotes rolling boil
    • Ultra-Low Watt Density eliminates scorching
    • UL Certified components
    • 240 Volt
    • L6-30 plug
    • 20 Amp breaker required for 10 & 15-gallon kettle
    • 30 Amp breaker required for 20 & 30-gallon kettle
      • 50-gallon kettle uses 2 x heating elements and requires 2 x 30 amp circuits
    SKU Size Element Wattage Kettle ID (in.) Height (in.)
    BE581C 10 3750 13.78 16.54
    BE582C 15 4500 15.75 18.90
    BE583C 20 5000 17.72 21.26
    BE584C 30 5750 19.69 23.62
    BE585C 50 (2) 5750 23.6 28.30



    ***In order to avoid injury or death we strongly recommend using a GFCI in any circuit used near water. You can find one here.***
