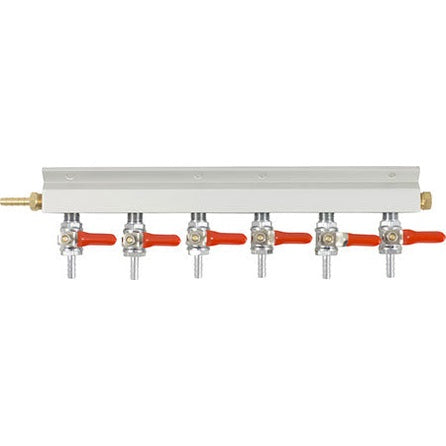

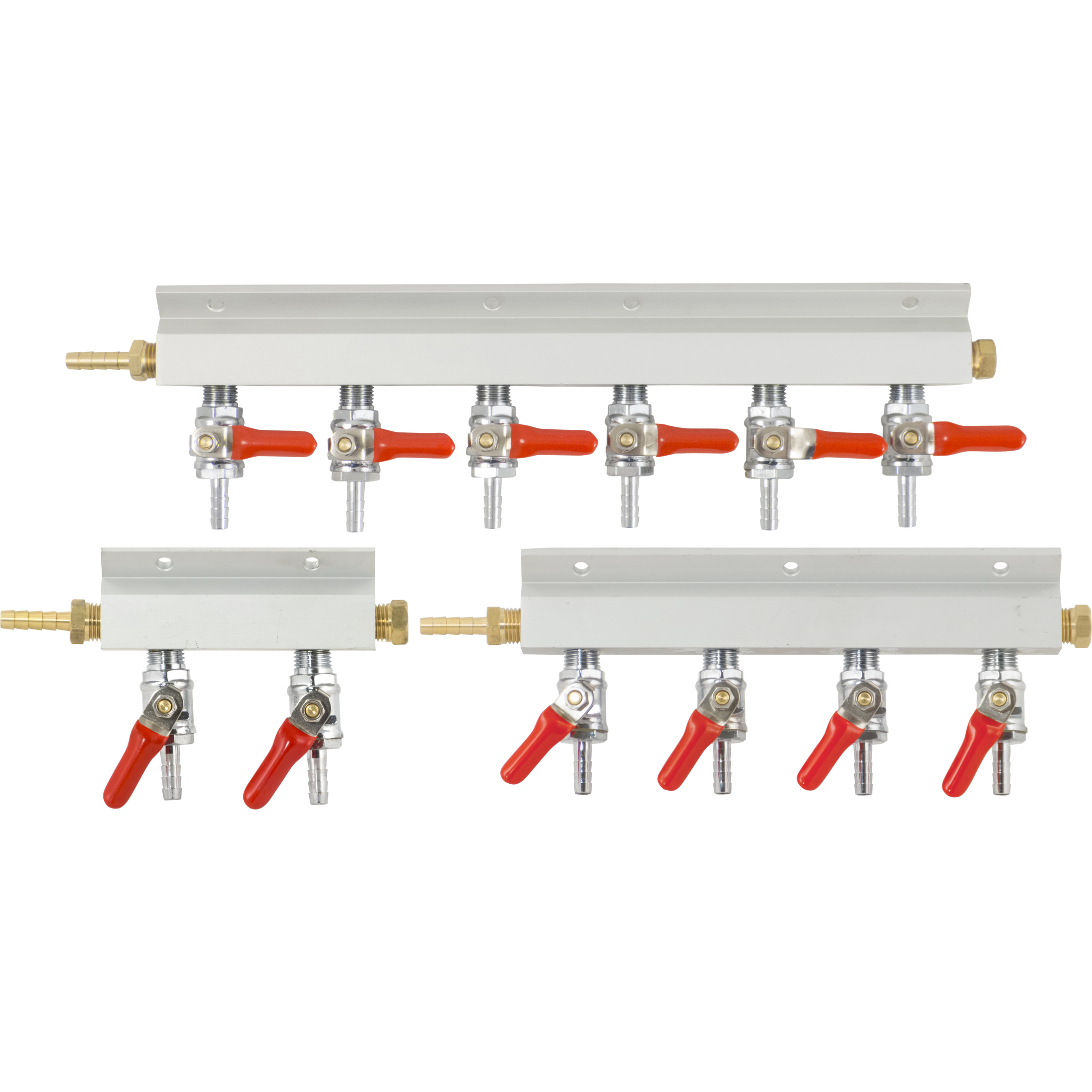

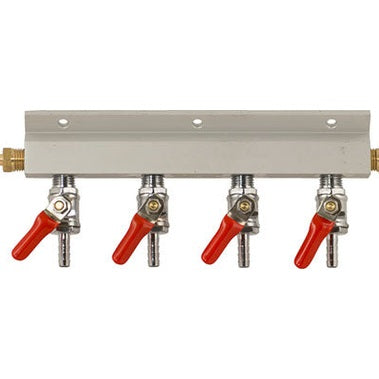

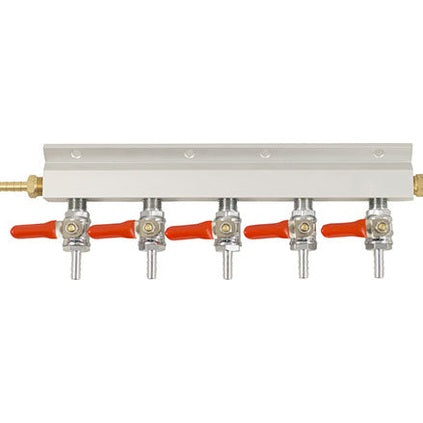

Gas Manifold - 1/4 in. (Aluminum)

    Description

    Manifolds are a great way to have one CO2 tank supply multiple kegs. This manifold is made from aluminum, brass, and stainless. It also works up to 100 psi and includes 1/4 in ball valves with built in check valves. Another ball valve can be added to the end of the manifold for an additional gas line.

    Multiple manifolds can be linked up with a 1/4" nipple (D1820B).

    Features:

    • 1/4" BSP ball valves
    • 1/4" barbs
    • Rated up to 100 psi
    • Screw holes for easy mounting
    • Optional additional port on the end

    SKU Overall Length
    D1802 5-1/2 in.
    D1807 7-3/8 in.
    D1811 9-5/8 in.
    D1813 11-1/2 in.
    D1816 13-1/2 in.


    The above measurements are from the tip of the brass barb to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.

    Kegland Part number: KL02554

    Gas Manifold - 1/4 in. (Aluminum)

      Product form

      SKU: D1802

      $26.49

      Calculating shipping time...
      Shipping
      Free Shipping*
      Shipping
      Paid Shipping
      Drop Ship
      Drop Ship
      Discount Exclusion
      Discount Exclusion
      Freight
      Freight Only
      Pre-book
      Pre Order

        Prop 65 Warning WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        Description

        Manifolds are a great way to have one CO2 tank supply multiple kegs. This manifold is made from aluminum, brass, and stainless. It also works up to 100 psi and includes 1/4 in ball valves with built in check valves. Another ball valve can be added to the end of the manifold for an additional gas line.

        Multiple manifolds can be linked up with a 1/4" nipple (D1820B).

        Features:

        • 1/4" BSP ball valves
        • 1/4" barbs
        • Rated up to 100 psi
        • Screw holes for easy mounting
        • Optional additional port on the end

        SKU Overall Length
        D1802 5-1/2 in.
        D1807 7-3/8 in.
        D1811 9-5/8 in.
        D1813 11-1/2 in.
        D1816 13-1/2 in.


        The above measurements are from the tip of the brass barb to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.

        Kegland Part number: KL02554

        Important Warnings & Shipping Info +
        Shipping Icon
        Free Shipping: Fast & Free Shipping over $79
        Shipping Icon
        Shipping Rates Apply: Bulk items like grain, bottles, and malt are excluded from our free shipping promotion due to their weight, and often dropship items. Standard shipping rates apply and are calculated at checkout based on your location and order size.
        Drop Ship Icon
        Drop Ship: This product will ship directly from the supplier. Delivery may take 1-4 weeks depending on the vendor.
        Discount Exclusion Icon
        Discount Exclusion: This item is not eligible for sitewide price reductions or percentage discounts. Learn more.
        Freight Icon
        Freight Shipping: This item ships freight only.
        Pre-book Icon
        Pre Order: This item is available for Pre-Order. Full payment is required to reserve stock.
        Shipping Weight: 0.7 lb
        • 5 stars: 17 (77%)
        • 4 stars: 5 (23%)
        • 3 stars: 0 (0%)
        • 2 stars: 0 (0%)
        • 1 star: 0 (0%)
        A
        Andrey

        As always, fantastic products! The customer support is outstanding. The more I deal with MoreBeer!, the more impressed I get.

        M
        Matthew H.
        If only it would have worked for me

        The manifold seemed to be built well, and I was excited to install it. Unfortunately, I had to return the item. The manifold is design for 1/4" tubing. I have 5/16" gas line tubing. Nevertheless, I felt it only fair that I give the product a 5-star rating because I didn't see anything wrong with it, and I would be using today. I personally would like to see MoreBeer! sell the same manifold for 5/16" tubing. Instead, I was left to Bezos' website to purchase the correct manifold. I would have preferred to support a beer company who actually know beer products. Cheers!

        J
        John A.
        Better looking and tougher

        I was using the small brass version of this and found them to break easily. These are substantial and I wish I had started with them.

        A
        Alan B.
        Wanted enough taps for kegs and the new beer gun

        Just finished my Keezer (3 kegs plus a couple growlers) and regulator will connect to my new 4-way manifold. I'll likely add a pressure gauge on the end to verify what pressure is at the manifold. Each tap has built-in check valve (or so the product description stated) to prevent back-pressure into the manifold.

        T
        Tom W.
        Keezer rebuild now nice and clean.

        Barbs are a bit narrow for a solid crimp.Other than that it works great.

        P
        Pat g

        Only thing is the barbed nipples seem to be smaller than the normal size for gas lines of 5/16". Still able to clamp down the lines to the Barb's.

        J
        Julie
        Cheaper than others in price, worth taking the chance.

        Took a chance and glad I did. No leaking issues that I’ve noticed yet. Works great and for the price I would purchase again.

        R
        Roger
        I am impressed

        No leaks. Solid manifold

        B
        Bill
        Works fine.

        I got this as an add-on to a 4-outlet manifold when I expanded my kegerator. A simple close nipple union and all is fine.

        A
        Arturo V.

        Great product. Tested it at 20psi before use. It did not leak.

        W
        Wayne P.
        Awesome addition to my keezer!

        Very easy to attach. Top construction.

        D
        Dennis S.
        No leaks! Love it!

        I have a one tap kegerator and wanted to expand to three. Easiest way way to expand with two picnic taps. Works like a charm no leaks. Very happy.

        R
        Robert T.
        Purchased 5 section manifold

        Manifold was well made. the hose barbs were a bit small for my hose and I had CO2 leaks until I cranked really hard on the the hose clamps. Make sure you use the correctly sized hose clamp tightened with a screw driver. A bigger OD hose barb would have worked better.

        G
        Gregory W.
        Perfect

        Exactly what I needed! Worked like a champ!

        D
        David G.
        Super duper glue on threads

        Why do they make it so hard to remove the adapters I almost broke see aluminum plate before the adapter broke Free Teflon tape is better than whatever they are using for glue till the threads together.

        R
        Richard H.
        Aluminum gas manifold

        Manifold was as expected no leaks and works as advertised.

        N
        Norm C.
        Works great

        Just what I needed for my two-line Keg King. It should have been included with the Keg King, but was a quick and high quality fix.

        R
        Rick
        Great manfold but beware of barb vs hose sizing

        I purchased a 4 way manifold at the same time as 4 gas lines to complete my carbonation setup. I was disappointed to find that the outlet barbs are 1/4" and the houses are 5/16". It is nearly impossible to get a gas tight seal with this combo. I used the hose clamp came with the hose set and added aoetiger clamp I addition. It is still minimal as the hose rotates easily and it would follow that there is some leakage.

        S
        Shawn
        Great product. Perfect for my keezer.

        Absolutely perfect. I connected this to my CO2 tank after verifying there were no leaks on my gas line and regulator. I then bumped the regulator up to 40psi and allowed gas flow to the manifold for 48hrs with the CO2 tank main valve in the off position. No leaks. This manifold (the 4 port) is at a slight bevel to allow for the perfect mounting angle in a keezer. Great product. I would buy it again if it ever got stolen or decided to leave me.

        S
        Steven B.
        Must Have Item

        Works great, and it should have been included with the Keg-King Triple Tap Kegerator!

        r
        richard i.
        Works great

        Works great very easy to use

        S
        Sergio B.
        Well made

        Very well made and affordable. Hooked it right up and not a single leak. Thank you Morebeer!

        A
        Anonymous

        Can these be linked together in series? For example I have a 2-way can I link it to a 3-way to make a 5-way? Thanks!

        A
        Anonymous

        are the fittings glued?

        MoreBeer!

        No. The fittings are all threaded.

        A
        Anonymous

        On this 5 way manifold can you twist off the Barbed fittings so duo tight fittings can be used?

        MoreBeer!

        Hi Matt - unfortunately the barbed fittings cannot be replaced with Duotight fittings. There is a new aluminum manifold in development that will be Duotight compatible hopefully released by the end of 2020..

        A
        Anonymous
        MoreBeer!

        Hi JR - We do have a 1/4" tubing that can be used for a gas line.
