Submersible pump for cooling applications or similar.
A perfect match for FCS to supply cooling liquids to fermentation tanks up to 50 liters.
Very quiet.
Technical Information:
Voltage: 24VDC
Maximum Power: 17W
Maximum Flow: 11 L/min / 2.9 Gal/min
Maximum Height: 4.1m / 13.5 feet
Barb Size (liquid out): Ø=10.28 mm (recommended hose size: 8x12)
Ø=0.40" (recommended hose size: 5/16" ID)
Barb Size (liquid in): Ø=14.68 mm (recommended hose size: 10x14)
Ø=0.57" (recommended hose size: 3/8" ID)
IP rating: IP68
Cable: 3m / 9.8 ft.
Connector: LP12, 2-pin plug (male)
Removable bracket with 4 suction feet is included
5x TC-gaskets for use between TC 34mm fittings.
DN15 is used where the inner dimensions of the fittings is 16mm or less.
Made from food grade silicone.
Digital (DS18B20) Inline sensor with M10 threads.
Used with an inline sensor holder to measure temperature on liquids passing the sensor.
Gasket is included.
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Sight glass with TC 2" (64mm) connectors
Length: 3.8" (98 mm)
Inside diameter: 1.8" (47.8 mm)
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
34mm Tri-Clamp Tee.
ID: 19.2mm (DN20)
OD: 21.9mm
Length: 60mm
Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter. A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning. Diameter: 500mm (19.7") Height: 90mm (3.5") Standard filter: R2x5 For User Manuals and support, please follow this link to Brewtools Docs.
Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter. A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning. Diameter: 420mm (16.5") Height: 90mm (3.5") Standard filter: R2x5 For User Manuals and support, please follow this link to Brewtools Docs.
Trubinator is a product for use in your brewing system or boil kettle. During whirlpool, hops and other particles will gather in the middle of the filter, making it possible to pumpe more clean wort to your fermenter. A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning. Diameter: 320mm (12.6") Height: 90mm (3.5") Standard filter: R2x5 For User Manuals and support, please follow this link to Brewtools Docs.
We've seen a lot of all-in-one systems over the years, but none are as feature-packed and affordable as the BrewZilla. While other units simply maintain your set temperature, the BrewZilla features a sophisticated digital controller which can be programmed with a full mash schedule, executing each step automatically. The built-in pump will continuously recirculate wort during the mash for more even heat distribution and higher efficiency, but thanks to the integrated camlock fitting, it has even more functionality. Add the optional whirlpool arm to make your late hop additions pop and speed up chilling time, or connect a camlock fitting and tubing to transfer wort to your fermenter. These are just a couple of reasons why MoreBeer! loves the BrewZilla, but there are so many More!
Our Top 10 Favorite Features:
Sophisticated digital controller capable of programmed mash steps, boil addition timers and delayed start
Built-in pump for constant recirculation during mash or whirlpooling and transferring with optional accessories
Full depth malt pipe for higher mash efficiency and capable of running small batches without a pricey adapter
Multiple power modes to cover each step of the brew day – low power to gently heat your mash up to full power for a rolling boil
Wort chiller included! Perfectly sized for this system and adds even more value to your purchase of the BrewZilla
High capacity brewhouse – with a volume of over 9 gallons, you can fit more grain and more wort to make MoreBeer!
Single wall design doesn't trap in heat – chill your wort quickly after the boil!
Super convenient bottom handle makes lifting/pouring a breeze
Rubber feet keep the boiler lifted off the ground and safely above any spills that may occur
Affordable! This is the best price for an all-in-one brewing system you'll find, period.
If you want to jump into all grain brewing right from your first batch, or as an upgrade from malt extract brewing, the BrewZilla is a complete turn key solution. The BrewZilla is an all-in-one electric brewery that has built-in elements for heating and boiling, programmable mash schedule and delayed start, a built-in pump for recirculation, an onboard water resistant control panel for setting and monitoring temperatures, a removable grain basket, and a built-in spigot for transferring. It is extremely portable and uses 110V power so it can be used nearly anywhere.
The V3.1.1 unit features an upgraded main circuit board that changes how the automatic step mashing functions. Now when moving from step to step, the timer for each step will not begin counting down until the programmed temperature is reached. This means more accurate mash schedules than ever before! The new board also introduces boil addition timers so you'll never miss the mark for hop additions.
To get the Wort Chiller Connection Kit for free, add the item to your cart along with the BrewZilla and use code ZILLAKIT at checkout.
New accessory! Check out the BrewZilla Whirlpool Arm, which uses the unit's internal pump to recirculate and spin the wort, improving hop extraction and chill times. No more stirring!
Automatic Step Mashing & Delayed Start!
One of the coolest features of the BrewZilla is the ability to program the unit with up to 6 individual temperatures and durations so you can step mash precisely how you desire. Simply press the "S1-S6" button to select the stage you want to adjust, and use the temp, time and +/- buttons to program the stage. If you have less than 6 stages in your mash schedule, program the stages you want to skip with 00:00 as the time and the controller will automatically move on to the next step. When all the stages are complete, the unit will sound an alarm and hold the last set temperature.
The programmable stages can also be used to set a delayed start of up to 23 hours in advance so that you can have your water hot and ready to go when you get home from work or wake up in the morning. In order to do this, fill the unit with strike water and program the controller with two steps. Step 1 should be programmed at a temperature lower than the unheated strike water (so the elements will remain off), and the duration should be programmed for however long you want the delay. Then program Step 2 with your desired strike water temperature and a duration of 1-2 hours, giving the BrewZilla ample time to heat up and giving you a margin of error in case you hit the snooze button the morning of brew day.
Recirculating Mash with Full Depth Malt Pipe
The built-in magnetic drive pump easily recirculates wort during the mash. We recommend getting some silicone tubing to go with the recirculation arm. This allows you more control over the recirculation and you can then use the pump to transfer your wort to your fermenter. As with any mash, be sure to stir your grain very thoroughly after mashing-in so you start out with an even temperature throughout the grain bed.
Some competing models advertise their perforated malt pipes as "high flow", but what they don't mention is how this affects efficiency. When recirculating the mash, wort will escape through the side perforations rather than passing through the grain at the bottom-most end of the malt pipe which can lead to lower efficiency. The BrewZilla's malt pipe is designed so that recirculating wort must pass through the entire grain bed before escaping through the false bottom and being pumped over the top of the grain bed again. If you're worried about the flow rate, simply add a pound or two of rice hulls to your grain bill. This is especially recommended when brewing with a high level of wheat, oat, or flaked grains.
Power & Heating Control
Dual heating elements run off of a single 110 volt plug and have individual switches allowing for more control over the heating process. One element is 1000 watts and the other is 500 for a combined 1500 watts! Use both when you need to ramp up the temperature quickly either at the start to get to your mash temp or to go from your mash temp to boiling. Use only one of the elements when you want to hold a temperature.
We highly recommend adding the optional BrewZilla Neoprene Jacket to help reduce heating times and maintain a more vigorous boil. The extra thick neoprene jacket is custom designed to insulate the entire kettle portion of the BrewZilla while staying out of the way of the ball valve and handles. The jacket can help you acheive up to 10% faster heat up times and cut heat loss from the boiler in half. And when it comes time to cool your wort after the boil, simply remove the jacket! While other units boast a double wall design for better heat retention, this actually becomes a disadvantage when it comes to chilling.
The digital control panel makes it easy to see the current temperature and set the temperature you want. The digital controller is also water resistant so don't worry about spills or some water dripping down the side. This controller is built for brewing!
The brewery also includes a stainless steel malt pipe with false bottom allowing you to easily shift from mash tun to boil kettle during your brew day. The malt pipe includes a handle to lift it out and tabs at the base so you can set the malt pipe over the kettle to let the wort drain out. It also has feet at its base to raise the malt pipe slightly off the base and help prevent clogging.
The included stainless steel wort chiller is shipped with bare ends so you can set it up for your situation. We list below the most common tubing and fittings to connect to a hose, hose bib, or faucet.
What MoreBeer! loves about this product: Homebrewing is trending in the direction of all-in-one, all-grain brewing systems and the BrewZilla is the ultimate value. The cost is half of the next comparable system with programmable mash steps and nearly the same as buying converted coolers and a kettle. We've brewed on all the systems and we can truly say the BrewZilla is the easiest to use. We feel confident that a lot of first time brewers could buy this and use it with ease. At the same time quite a few of our experienced, all-grain brewing staff are buying it to brew at home. The unit is extremely compact because the pump is built-in to the bottom of the unit. You can move it around with ease which makes it perfect for guys and gals that have space constraints. Someone on the team also mentioned how they like that you can drain it via gravity without having to use the pump. All in all a great buy and highly recommended. Please note you will need a few extra pieces of hardware to connect the wort chiller and at least 2' of silicone tubing for the sparge.
Use the Pump for More Than Just Recirculation!
One of the surprisingly handy features of the BrewZilla is that the recirculation pipe features a female camlock. This allows you to hook up other accessories and use the unit's pump for more than just recirculating wort. With a male camlock and silicone tubing, for example, you can use the internal pump to push wort through a plate chiller or counterflow chiller. Check out our selection of camlock fittings here.
Features:
Gen 3.1.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
Digital temperature controller
Automatic step mashing with 6 programmable stages
110V power and plug
Dual heating elements for total control (1000 watts and 500 watts)
Stainless steel 1/2 inch ball valve for draining (dont have to use the pump)
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Magnetic drive pump for recirculation
Recirculation arm
Bottom handle for easy lifting and pouring
Upgraded rocker switches
Rubber feet
Temperature reads in °F or °C (press and hold temp button for several seconds to adjust)
32.75 in H (with recirculation arm) x 12.5 in D
Recommended max. grain bill - 18 lbs
Recommended min. grain bill - 8 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
Note: The manual references an element for a different market. This unit comes with two heating elements for a total of 1,500 watts.
Kegland Part Number: KL05838

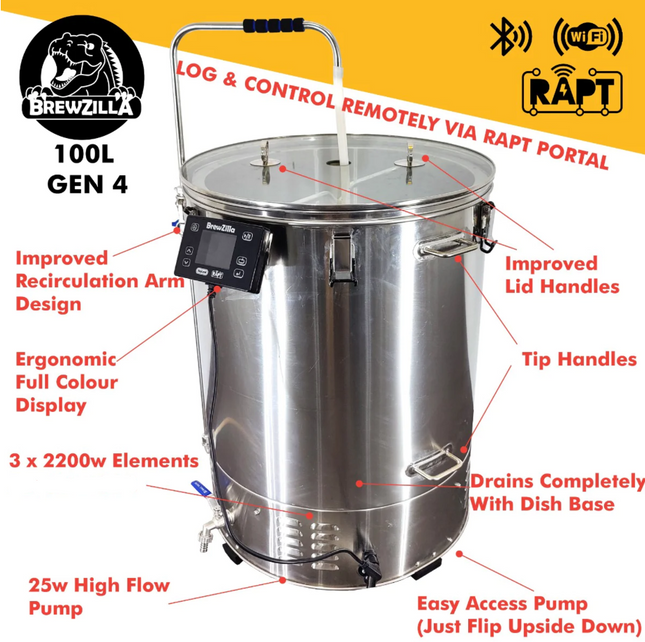

Elevate your brewing game with the Gen 4 BrewZilla. This cutting-edge system combines innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain -- get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don't overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you'd prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you'll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you'll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone -- all of the data from your brew is automatically logged to your portal profile. This information doesn't just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn't just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone's web browser. Not sure when you'll be home from work or your kid's ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We've all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there's more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you'll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller's firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery's grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.

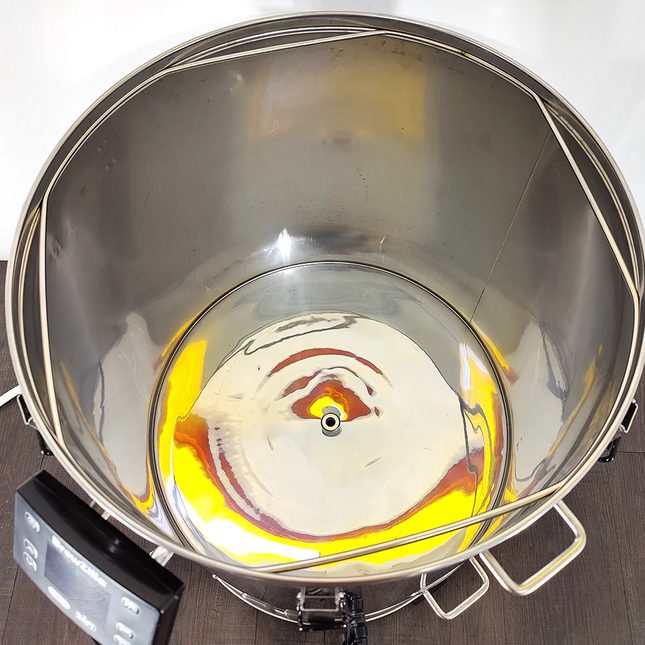

Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you'll be able to extract every last drop of wort to your fermenter. If you've brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you'll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you'll find on the controller is adjusting the pump flow. This doesn't control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it's an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you'll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don't have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We've been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it's also offered at an incredibly competitive price point when compared to other systems. You'll get all of the cutting edge Bluetooth technology you'd get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that's yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you'll need to spend another $100 for the recirculation pump kit. What's more, no other system in the same 'weight class' has the same grain capacity. And if the standard capacity isn't quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you're investing in a top shelf system and all of the critical features you're expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL3276
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the Gen 4 BrewZilla. This cutting-edge system combines innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain -- get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don't overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you'd prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you'll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you'll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone -- all of the data from your brew is automatically logged to your portal profile. This information doesn't just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn't just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone's web browser. Not sure when you'll be home from work or your kid's ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We've all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there's more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you'll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller's firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery's grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you'll be able to extract every last drop of wort to your fermenter. If you've brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you'll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you'll find on the controller is adjusting the pump flow. This doesn't control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it's an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you'll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don't have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We've been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it's also offered at an incredibly competitive price point when compared to other systems. You'll get all of the cutting edge Bluetooth technology you'd get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that's yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you'll need to spend another $100 for the recirculation pump kit. What's more, no other system in the same 'weight class' has the same grain capacity. And if the standard capacity isn't quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you're investing in a top shelf system and all of the critical features you're expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL3276
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V 17 Gallon Gen 4 BrewZilla. This cutting-edge system combines more power & capcity with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 41.5 lb capacity, the BrewZilla can mash nearly 20% more grain than similar sized models of the Anvil Foundry and Grainfather G70. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
17.1 gallon total capacity with a finished beer output of 10-12 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 16 amps from 30 amp circuit
Triple heating elements (2000, 1000 and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 36" H (with recirculation arm) x 16" D
Recommended max. grain bill: 41.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Flow: 5 gal/min
Max Head: 11 ft.
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 25 watts
Fittings: 1/2" (13 mm) barbs
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27458
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V Gen 4 BrewZilla. This cutting-edge system combines more power with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 11 amps from 30 amp circuit
Dual heating elements (1900 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27434
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V Gen 4 BrewZilla. This cutting-edge system combines more power with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 11 amps from 30 amp circuit
Dual heating elements (1900 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27434
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V 26 Gallon Gen 4 BrewZilla. This cutting-edge system combines more power & capcity with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Heat Exchanger Dish
The 100L BrewZilla comes standard with the Heat Exchanger Dish which redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature. An optional accessory for the smaller units, but included as standard on the 100L BrewZilla.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Features:
Gen 4.1
Stainless steel construction
26.4 gallon total capacity with a finished beer output of 15-20 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA L6-30P Plug
Requires NEMA L6-30R receptacle
Draws 30 amps. Ask your electrician if you need to oversize the circuit
(3) 2,200W heating elements
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Heat exchanger dish included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 36" H (with recirculation arm) x 20.5" D (boiler only)
Recommended max. grain bill: 41.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 5 gal/min
Max Head: 11.15 ft.
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 25 watts
Input/Output: 13mm barb
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
Wort Chiller for cooling
We recommend either of the below counterflow chillers
Copper Counterflow Chiller (WC130)
BrewBuilt® Stainless Tri-Clamp Counterflow Chiller (WC140)
KegLand Part Number: KL32803
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V 26 Gallon Gen 4 BrewZilla. This cutting-edge system combines more power & capcity with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Heat Exchanger Dish
The 100L BrewZilla comes standard with the Heat Exchanger Dish which redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature. An optional accessory for the smaller units, but included as standard on the 100L BrewZilla.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Features:
Gen 4.1
Stainless steel construction
26.4 gallon total capacity with a finished beer output of 15-20 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA L6-30P Plug
Requires NEMA L6-30R receptacle
Draws 30 amps. Ask your electrician if you need to oversize the circuit
(3) 2,200W heating elements
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Heat exchanger dish included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 36" H (with recirculation arm) x 20.5" D (boiler only)
Recommended max. grain bill: 41.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 5 gal/min
Max Head: 11.15 ft.
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 25 watts
Input/Output: 13mm barb
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
Wort Chiller for cooling
We recommend either of the below counterflow chillers
Copper Counterflow Chiller (WC130)
BrewBuilt® Stainless Tri-Clamp Counterflow Chiller (WC140)
KegLand Part Number: KL32803
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Elevate your brewing game with the 220V 26 Gallon Gen 4 BrewZilla. This cutting-edge system combines more power & capcity with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Heat Exchanger Dish
The 100L BrewZilla comes standard with the Heat Exchanger Dish which redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature. An optional accessory for the smaller units, but included as standard on the 100L BrewZilla.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Features:
Gen 4.1
Stainless steel construction
26.4 gallon total capacity with a finished beer output of 15-20 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA L6-30P Plug
Requires NEMA L6-30R receptacle
Draws 30 amps. Ask your electrician if you need to oversize the circuit
(3) 2,200W heating elements
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Heat exchanger dish included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 36" H (with recirculation arm) x 20.5" D (boiler only)
Recommended max. grain bill: 41.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 5 gal/min
Max Head: 11.15 ft.
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 25 watts
Input/Output: 13mm barb
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
Wort Chiller for cooling
We recommend either of the below counterflow chillers
Copper Counterflow Chiller (WC130)
BrewBuilt® Stainless Tri-Clamp Counterflow Chiller (WC140)
KegLand Part Number: KL32803
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
Controller mounting bracket for the Gen 4 BrewZillas. Mount your controller up to 5 ft. away with the RAPT Screen Extension Cable (AG547). KegLand Part Number: KL32698
RAPT Controller extension cable for the BrewZilla 35L, 65L and 100L Generation 4 models. Mount your screen up higher in your brew space and get a clear view on brew day.
Compatible with 110V / 220V models
4.9 ft. Cable Length (1.5 m)
Suitable only for Gen 4 BrewZillas
KegLand Part Number: KL32681
Replacement ball valve for Gen 4 BrewZillas. The valve has been updated since the Gen 3.1.1 model as it has a different grooved tail end capable of accepting a 0.51" (13mm) radial seal barb and nut.
KegLand Part Number: KL31714
Replacement ball valve for Gen 4 BrewZillas. The valve nozzle has a 0.51" (13mm) radial seal barb and nut.
Does not include Rear Nut & Barb. See AG556.
Reduce heating time during your mash with the Gen 4 BrewZilla
Redistribute recirculating wort for longer heating element exposure
Improve heat distribution throughout the mash
Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.
For use with the Gen 4 35L BrewZilla. It is not compatible with any previous generations of BrewZillas or DigiBoils.
The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.
NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.
KegLand Part Number: KL29353
Reduce heating time during your mash with the Gen 4 BrewZilla
Redistribute recirculating wort for longer heating element exposure
Improve heat distribution throughout the mash
Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature.
For use with the Gen 4 65L BrewZilla. It is not compatible with any previous generations of BrewZillas or DigiBoils.
The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom.
NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish.
KegLand Part Number: KL29360
For all-in-one brewers and BIAB brewers, lifting the grains from your vessel can be daunting task. Give your back a rest and use the Lift-N-Lock pulley system to effortlessly lift up your grain bag or malt pipe and while your sweet wort drains into the kettle. This heavy-duty pulley is made from strong nylon strapping, laser cut 304 grade stainless steel and is capable of lifting large heavy loads with ease. It's the perfect pulley for lifting the heavy malt pipe from your BrewZilla or other all-in-one system, especially when brewing high gravity beers with a massive grain bill. It's a bit more expensive than other pulley systems, but there's no comparison when it comes to easily lifting or lowering the malt pipe. The included strap is 10m long by 25mm wide (32.8 ft. x 1 in.).
The pulley system enables you to multiply your pulling force by 4 times. If you apply 60 lbs of pulling force, the pulley can lift 240 lbs with relative ease. Be sure that the beam you mount the pulley to is rated for the total amount of force being applied i.e. pulling force plus load weight, so for this example 300+ lbs.
KegLand Item Number: KL30885
Add this neoprene jacket to your Gen 4 BrewZilla to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Sparge arm sleeve included to reduce heat loss during mash recirculation
Add some insulation to your BrewZilla to get better boils! This neoprene jacket will help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling. Also includes a neoprene sleeve for the recirculation arm to reduce heat loss during the mash.
This jacket will fit Gen 4 BrewZilla models. It is not compatible with older generations of BrewZillas and DigiBoils due to where the cutouts on the jacket are located.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 100L BrewZilla Gen 4
Made from 8 mm thick neoprene which is easy to wash after use
KegLand Part Number: KL24389
Add this neoprene jacket to your BrewZilla or DigiBoil to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Add some insulation to your BrewZilla or DigiBoil to get better boils! This jacket will fit all 35 L sizes and help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling.
This jacket will fit Gen 3.1.1 and older BrewZilla models. It is not compatible with Gen 4 BrewZillas.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 35L Brewzilla and DigiBoil
Left cut out for the valve
Right cut out for the bottom handle
Made from thick neoprene, which is easy to wash after use
Kegland Part Number: KL04831
Add this neoprene jacket to your Gen 4 BrewZilla to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Sparge arm sleeve included to reduce heat loss during mash recirculation
Add some insulation to your BrewZilla to get better boils! This neoprene jacket will help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling. Also includes a neoprene sleeve for the recirculation arm to reduce heat loss during the mash.
This jacket will fit Gen 4 BrewZilla models. It is not compatible with older generations of BrewZillas and DigiBoils due to where the cutouts on the jacket are located.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 35L BrewZilla Gen 4
Made from 8 mm thick neoprene which is easy to wash after use
KegLand Part Number: KL24365
Add this neoprene jacket to your BrewZilla or DigiBoil to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Add some insulation to your BrewZilla or DigiBoil to get better boils! This jacket will fit all 65 L sizes and help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling.
This jacket will fit Gen 3.1.1 and older BrewZilla models. It is not compatible with Gen 4 BrewZillas.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 65L Brewzilla and DigiBoil
Left cut out for the valve
Right cut out for the bottom handle
Made from thick neoprene, which is easy to wash after use
Kegland Part Number: KL08921
Add this neoprene jacket to your Gen 4 BrewZilla to speed up heating!
Heating is 10% faster and heat loss from the boiler is reduced by 50%
Remove the jacket after the boil to speed up chilling
Thick, insulating neoprene is secured to the boiler body with a sewn-on hook and loop fastener strap
Sparge arm sleeve included to reduce heat loss during mash recirculation
Add some insulation to your BrewZilla to get better boils! This neoprene jacket will help keep the heat in for quicker and more vigorous boils. Slap it on to speed up heating; take it off to speed up chilling. Also includes a neoprene sleeve for the recirculation arm to reduce heat loss during the mash.
This jacket will fit Gen 4 BrewZilla models. It is not compatible with older generations of BrewZillas and DigiBoils due to where the cutouts on the jacket are located.
Features:
10% faster heat up time
50% less heat loss from boiler
Fits the 65L BrewZilla Gen 4
Made from 8 mm thick neoprene which is easy to wash after use
KegLand Part Number: KL24372
Upgrade Gen 3 and Gen 4 BrewZillas with a clear sight glass to monitor volume levels throughout your brewing process Replaces the solid metal recirculation pipe so you can check volume levels even while the malt pipe is draining The PPSU sight glass now comes standard on Gen 4.1 BrewZillas *Requires measuring, cutting, and assembly*
This upgrade kit is suitable for BrewZilla Gen 3 and Gen 4 breweries. This will enable you to see the liquid level through the incredibly strong and crack resistant PPSU sight glass. This can be quite handy when you're sparging to a known level as the malt pipe would normally be sitting on top of the halo ring making it difficult to see the liquid level from the indentation markings inside the BrewZilla. Assembly Required: You will also need plumbers tape or food grade Loctite for the female camlock x female 1/2" fitting that comes on the BrewZilla's recirculation arm. The BrewZilla's camlock fitting is reused in the assembly of the sight glass, do not dispose of it prematurely. Please note: This kit includes a one size fits all sight glass for multiple models and sizes. You will need to cut down the 39" PPSU tube to fit your specific model of BrewZilla depending on the length of the recirculation arm. We recommend purchasing the Pipe Cutter to cut the tube cleanly. See the video below showing you how to measure and install this on a BrewZilla. Includes: Brewzilla Sight Glass PPSU Tube - 39.3" (100cm) Sight Glass Connection Kit (Ball valve & Elbow) Sight Glass Graduation Sticker for 35L, 65L or 100L
Reduce heating time during your mash with the Gen 4 BrewZilla Redistribute recirculating wort for longer heating element exposure Improve heat distribution throughout the mash Speed up heating times with the Heat Exchanger Dish (HED) for Gen 4 BrewZillas. This optional upgrade accessory redirects the flow of wort so that it spends more time exposed to the heating elements before reaching the center drain at the bottom of the kettle and being recirculated. Due to the concave bottom and central draining hole on the Gen 4 BrewZilla, recirculating wort will pass through the malt pipe and then down through the boiler false bottom following the path of least resistance. This can cause wort to make a B-line for the drainage hole and reduce the wort's exposure to the unit's heating elements. With the HED installed, wort will be directed to the edge of the BrewZilla base and pass over the elements for a longer period and reduce the time needed to heat to your set temperature. This piece comes standard with the 100L BrewZilla. It is offered as an optional accessory for the 35L and 65L sizes. The HED has been pressed into a slight concave shape to match the curvature of the boiler false bottom. Includes a longer eye bolt assembly than the one included with the false bottom. NOTE: The order of bolt to washer to nuts goes as follows. Eye bolt, washer, false bottom, washer, nut, HED, then wing nut. This is so that the eye bolt does not come completely removed when and if you clean underneath the Heat Exchanger Dish. KegLand Part Number: KL2937
Replacment malt pipe for the 35L BrewZilla Gen 4. This unit is not suitable for older generation BrewZillas or DigiBoils.
KegLand Part Number: KL32773
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Replacment malt pipe for the 65L BrewZilla Gen 4. This unit is not suitable for older generation BrewZillas or DigiBoils.
KegLand Part Number: KL32797
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
This BrewZilla PPSU sight glass stainless steel ball valve and elbow use radial seal O-rings to form a strong, leak-free connection. Two in the ball valve and two in the bottom elbow. When assembling the sight glass to upgrade your existing Gen 3 or Gen 4 BrewZilla, you will reuse the female camlock x female 1/2" fitting that comes on the recirculation arm, or you need to purchase a separate fitting for the end of your custom build. You will also need plumbers tape or food grade Loctite to assemble the ball valve with the camlock fitting. Rather than purchasing the parts separately, Gen 3 and Gen 4 BrewZillas can be upgraded with one of these sight glass kits. KegLand Part Number: KL33817
